20W GU10 LED Module Successfully Passes Heating Test

Aug 04, 2026

At WeiYe Optoelectronic Technology Co., Ltd., product quality and reliability are always our top priorities. To ensure stable performance in real applications, our 20W GU10 LED Module has successfully completed a comprehensive heating test under standard operating conditions.

Test Conditions

The test was carried out in a controlled laboratory environment using professional temperature measuring equipment.

Product: 20W GU10 LED Module
Ambient Temperature: 25.0°C
Input Voltage: AC 220V 50Hz
Actual Power: 19.7W
Test Duration: 14:42 – 17:33
Test Method: Continuous operation until temperature stabilization

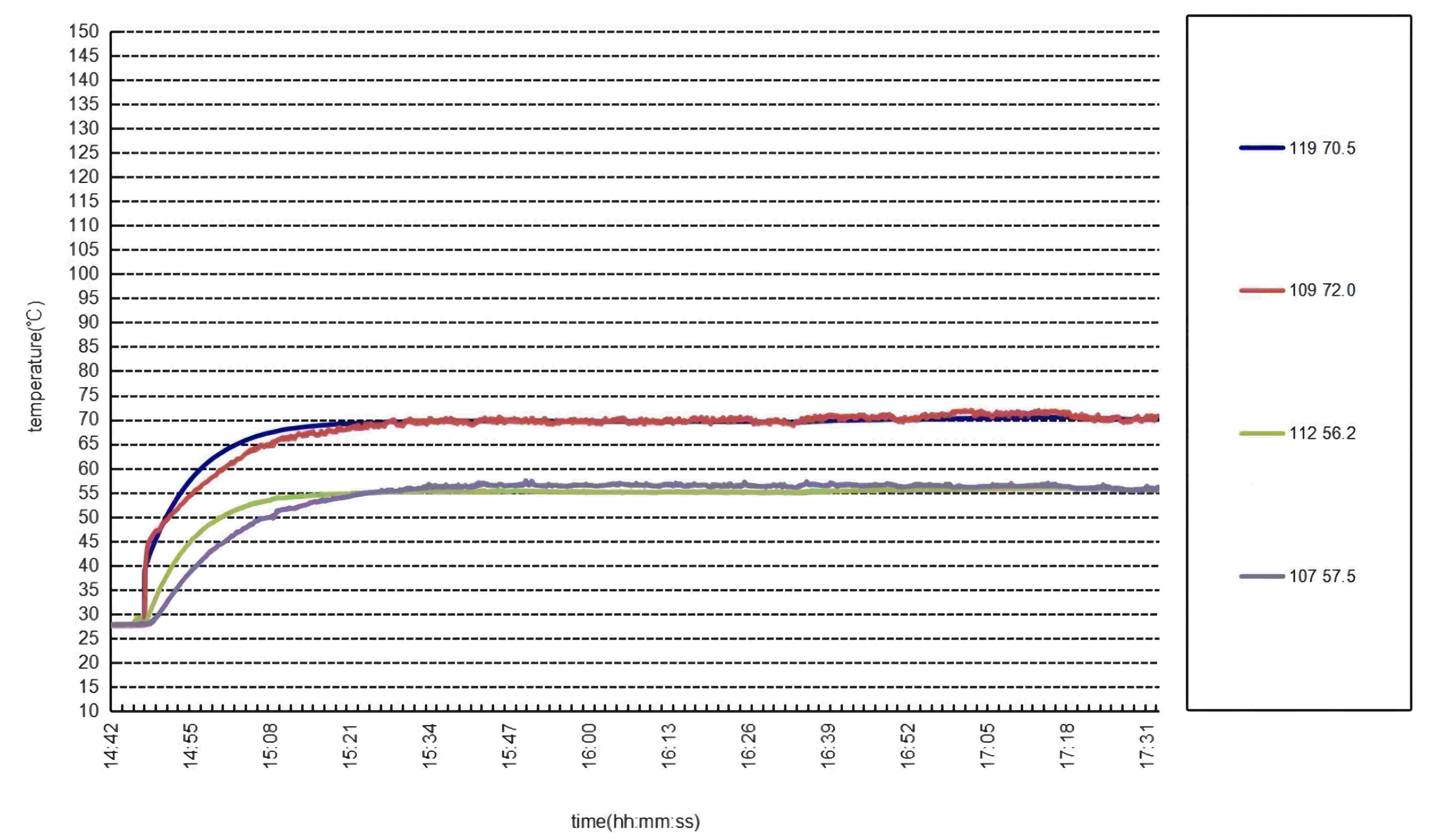

Temperature Test Results


Test Point	Temperature
LED Negative Electrode	70.5°C
Lens Luminous Surface	72.0°C
Aluminum Heatsink	56.2°C
Driver Tc Point	57.5°C

Excellent Thermal Performance

The test results demonstrate that the 20W GU10 LED Module maintains excellent thermal management during continuous operation.

Thanks to our optimized structural design and high-quality aluminum heat sink, heat is effectively dissipated, helping to:

Maintain stable light output
Improve LED lifetime
Protect the LED driver
Ensure reliable long-term performance

Efficient thermal management is one of the key factors behind the module's long service life of up to 50,000 hours.

Designed for Professional Lighting Applications

The 20W GU10 LED Module is suitable for a wide range of indoor lighting applications, including:

Residential lighting
Commercial lighting
Hotels
Retail stores
Offices
Exhibition and display lighting

With high efficiency, excellent heat dissipation, and reliable quality, it is an ideal replacement for traditional GU10 and MR16 spotlight solutions.

Quality You Can Trust

Every WeiYe LED Module undergoes strict quality inspections and performance testing before delivery. Heating tests are an essential part of our quality control process, ensuring that every product meets high standards of safety, durability, and performance.

We continue to provide innovative OEM & ODM lighting solutions with consistent quality for customers worldwide.

About WeiYe Optoelectronic Technology Co., Ltd.

WeiYe Optoelectronic Technology Co., Ltd. specializes in the design and manufacture of GU10 LED Modules, LED Downlights, LED Spotlights, and OEM/ODM lighting solutions. With over 12 years of experience, we are committed to delivering high-performance lighting products featuring unique designs, excellent thermal management, and reliable quality for global customers.
