This high-performance 10W GU10 LED module delivers efficient, stable which is made of cold forging aluminum and long-lasting lighting for commercial and residential spotlighting, downlights and track lighting systems. Ideal for hotels, retail stores, offices, galleries, kitchens, living rooms and exhibition spaces.
Item NO.:
SCTD-10W-30WLead Time:
7-10 DaysProduct Orgin:
ChinaBrand:
LHWYLEDShipping Port:
Shen ZhenPayment:
TTMOQ:
1Tade Term:
EXWModel No. SCTD-1
This can be made as surface mouned type
Features: Finish Color: White / Black Color;

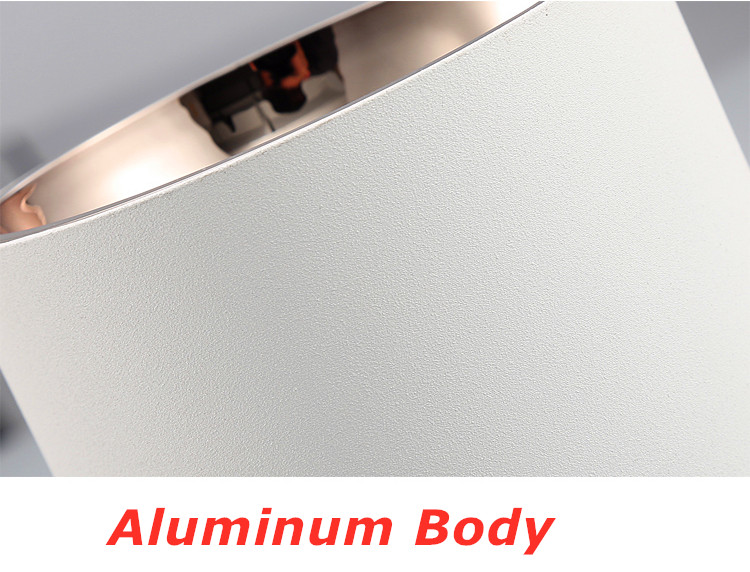

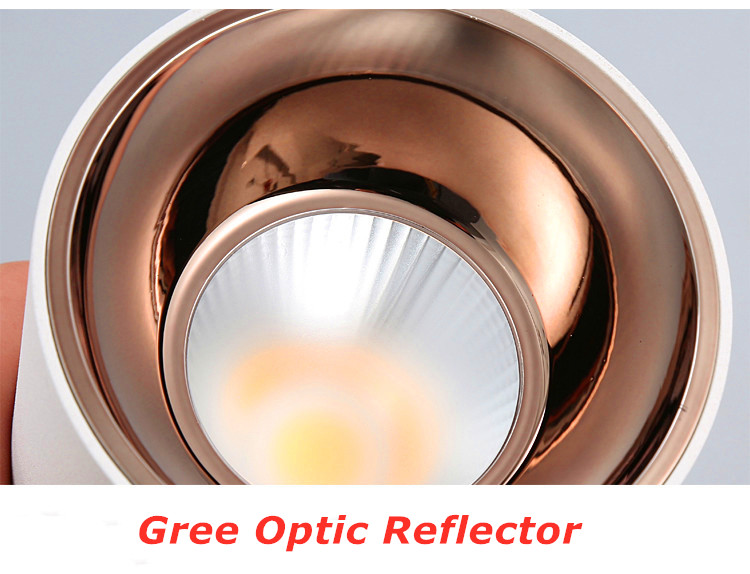

Material: Die-cast Aluminum + Reflector + Frosted PC Cover;

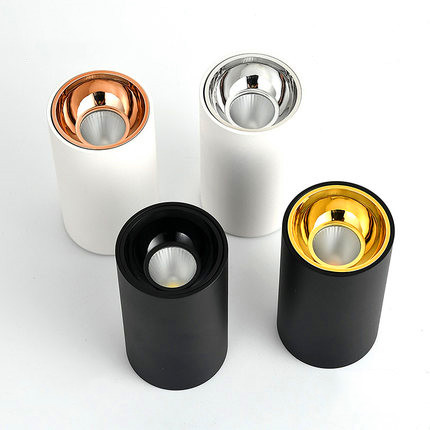

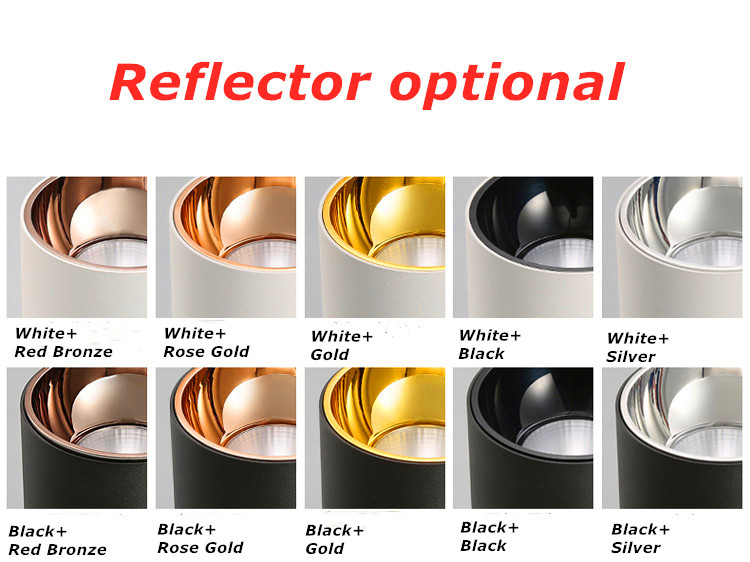

Baffle Color: White/Black/Gold
Cable Length: 1.0m/1.5m/2.0m








Model No.
Power
Lumen(lm)
Driver Brand
LED Style
CCT(K)
Baffle
Color
Beam Angle
Power Factor
CRI
Size(mm)
SCTD-1-10W
10W
850lm
Philips Tridonic
V.S .
Osram
CREE
Citizen
Osram
2700K
3000K
3500K
4000K
5000K
5700K
6500K
Golden
Black
White
15°
30°
45°
>0.90
Ra>90
Ra>95
ɸ53*H200
SCTD-1-15W
15W
1200lm
ɸ73*H200
SCTD-1-20W
20W
1700lm
ɸ93*H200
SCTD-1-30W
30W
2600lm
ɸ113*H200
