The DC24V GU10 LED Module 12W is a premium low-voltage lighting solution designed for modern architectural and commercial applications. Featuring high efficiency, excellent light quality, and reliable performance, it delivers comfortable illumination with long-lasting durability, making it ideal for hospitality, retail, residential, and smart light1
The DC24V GU10 LED Module 10W is a premium low-voltage lighting solution designed for modern architectural and commercial applications. Featuring high efficiency, excellent light quality, and reliable performance, it delivers comfortable illumination with long-lasting durability, making it ideal for hospitality, retail, residential, and smart light1
The DC24V GU10 LED Module 10W is a premium low-voltage lighting solution designed for modern architectural and commercial applications. Featuring high efficiency, excellent light quality, and reliable performance, it delivers comfortable illumination with long-lasting durability, making it ideal for hospitality, retail, residential, and smart light1
The DC24V GU10 LED Module 7W is a premium low-voltage lighting solution designed for modern architectural and commercial applications. Featuring high efficiency, excellent light quality, and reliable performance, it delivers comfortable illumination with long-lasting durability, making it ideal for hospitality, retail, residential, and smart lighti1
The DALI DT8 3CCT Tunable IP65 Waterproof GU10 LED Module 12W is a smart and energy-efficient lighting solution featuring 3000K/4000K/6000K tunable white control, smooth dimming, and high visual comfort. With an IP65 waterproof rating, it is ideal for bathrooms, hotels, retail spaces, and other indoor or semi-outdoor applications, delivering reliab1
The 0-10V Dimmable IP65 Waterproof GU10 LED Module 7W is designed for versatile indoor and outdoor lighting applications. With 0-10V dimming capability, it offers flexible brightness control to suit various environments. Its IP65 waterproof rating ensures reliable performance in wet and dusty conditions, making it ideal for bathrooms, underoof and commercial spaces.
Item NO.:
WY-M3-7WLead Time:
1-3 DaysProduct Orgin:
ZhongShanBrand:
LHWYLEDShipping Port:
ShenZhen/GuangZhouPayment:
TTColor:
Dark GreyMOQ:
10Tade Term:
EXWThe IP65 Waterproof GU10 LED Module Advantages:
01. To replace the GU10/MR16 Bulbs;
02: Beam angle by reflector: 15/24/36/50°;
03. Beam angle by lens: 10/15/24/36/60°;
04. Power: 7W 9W 12W;
05. Warranty: 3-5 Years;
06. Material of heat sink: Heavy Diecasting Aluminum;
07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;
08. Outer trim can be white/black;
09. Constant Voltage DC24V/Constant Current Available too;
10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;
11. Laser, Logo, Customized Package and OEM, ODM is optional too;
12. Fast lead time: 1-3 days for under 500pcs;
13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98
14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;
15. Dimming type: 3 in 1 Dimmable (Triac, 3CCT Turnable, 4 Current Adjustable) /0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx /CCT Tunable 2700k-6500K/1800K-4000K/Smart WIFI Tuya Zigbee ;
Why Choose WeiYe GU10 LED 0-10V Module?
01. To replace the GU10/MR16 Bulbs;
02. Beam angle by reflector: 15/24/36/60°;
03. Beam angle by lens: 10/15/24/36/60°;
04. Power: 7W 9W 12W;
05. Warranty: 3-5 Years;
06. Material of heat sink: Cold forging aluminum 1070 pure aluminum;
07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;
08. Outer trim can be white/black;
09. Constant Voltage DC24V/Constant Current Available too;
10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;
11. Laser, Logo, Customized Package and OEM, ODM is optional too;
12. Fast lead time: 1-3 days for under 500pcs;
13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98
14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;
15. Dimmable type: 3 in 1 Dimmable (Triac, 3CCT Turnable, 4 Current Adjustable) /0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx /CCT Tunable 2700k-6500K/1800K-4000K/Smart WIFI Tuya Zigbee ;
This is the parameters of the IP65 GU10 LED Module series:
Model No. | Power | Lamp Lumen | LED Chip | CRI | CCT | LED Driver | Size |

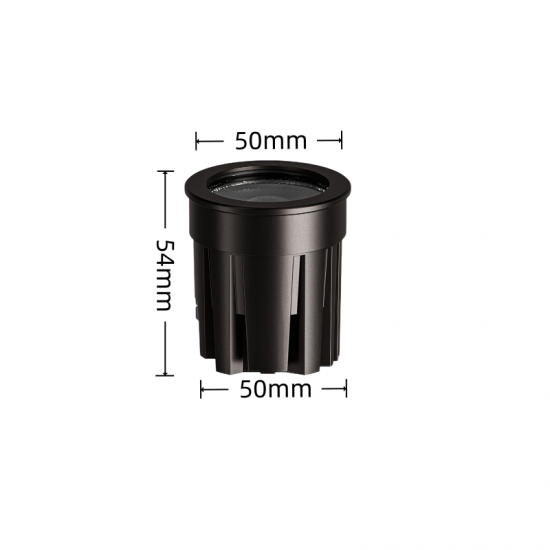

WY-M3-7W | 7W | 560lm | Bridgelux C6 | CRI>90 CRI>95 CRI>98 | 3CCT 1800-4000K 2700-4000K 3000-4000K 2700-6000K | Philips Osram Tridonic LTECH Eaglerise Lifud | D50*H54mm |
WY-M3-9W | 9W | 720lm | Bridgelux C8 | D50*H50mm | |||
WY-M3-12W | 12W | 1000lm | Bridgelux C8 | D50*H51mm |
Key Applications
GU10 Module delivers highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.
Package
Power | QTY/CTN(pcs) | GW/CTN(kgs) | Carton Size(cm) |
7W | 60 | 11.70 | L46*W32*H35 |
10W | 60 | 14.45 | L46*W32*H35 |
12W | 60 | 14.45 | L46*W32*H35 |
15W | 48 | 13.90 | L50*W30*H37 |
20W | 48 | 14.50 | L50*W30*H37 |
