Triac Dimmable IP65 Waterproof GU10 LED Module 12W is a high performance lighting solution designed for both indoor and outdoor environments. Featuring advanced Triac dimming technology, this LED module allows seamless brightness adjustment. Its IP65 waterproof rating ensures resistance to dust and water, making it suitable for harsh condition1
Triac Dimmable IP65 Waterproof GU10 LED Module 9W features a GU10 base and offers high-efficiency lighting. It supports TRIAC dimming, enabling smooth brightness adjustment. With an IP65 waterproof rating, the module is ideal for both indoor and outdoor applications, protecting against dust and water ingress. The compact design ensures easy install1
Triac Dimmable IP65 Waterproof GU10 LED Module 7W is a high-performance LED lighting solution designed for both residential and commercial environments. Featuring TRIAC dimming compatibility, it allows smooth brightness adjustment, ensuring optimal ambiance for various settings. The IP65 rating guarantees excellent protection against dust1
Triac Dimmable GU10 MR16 LED Module 12W, a high-performance lighting solution ideal for spotlights, downlights, and track lighting systems. Featuring an exclusive private design with unique structure and appearance, this module is available in 7W, 10W, and 12W power options. Constructed from cold-forging 1070 pure aluminum, it delivers outstanding 1
Triac Dimmable GU10 MR16 LED Module 10W is an energy-efficient lighting solution designed for residential and commercial environments. With triac dimming compatibility, this module provides smooth, flicker-free brightness adjustment, ideal for creating customizable lighting atmospheres.

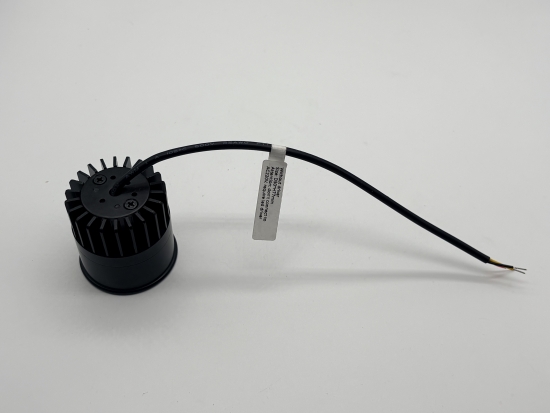

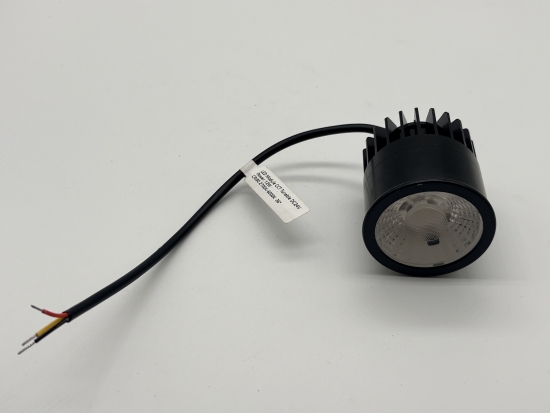

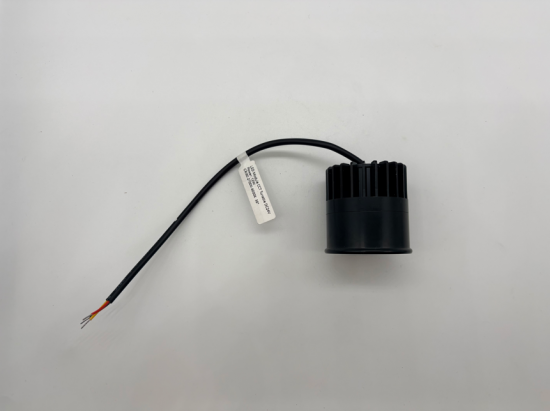

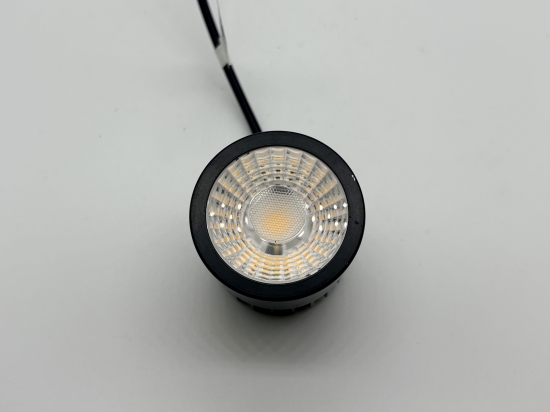

This is WeiYe Led module. Transform your lighting experience with our high-performance 7W GU10 LED Module. Designed as a direct, energy-saving replacement for traditional halogen bulbs, this module delivers brilliant illumination while significantly reducing power consumption.It adopt latest design which is made of cold forging pure aluminum 1070 with efficient heat dissipation.
Item NO.:
WY-M2-7WLead Time:
1-3 daysProduct Orgin:
ZhongShanBrand:
LHWYLEDShipping Port:
ShenZhen/GuangZhouPayment:
TTColor:
BlackMOQ:
10Tade Term:
EXWThe Forging Aluminum GU10 advantages:
01. To replace the GU10/MR16 Bulbs;
02: Beam angle by reflector: 15/24/38/60°;
03. Beam angle by lens: 10/15/24/36/60°;
04. Power: 7W 9W 10W 12W 15W 20W;
05. Warranty: 3-5 Years;
06. Material of heat sink: Cold forging aluminum 1070 pure aluminum;
07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;
08. Outer trim can be white/black;
09. Constant Voltage DC24V/Constant Current Available too;
10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;
11. Laser, Logo, Customized Package and OEM, ODM is optional too;
12. Fast lead time: 1-3 days for under 500pcs;
13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98
14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;
15. 3 in 1 Dimmable type: 0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx/CCT Tunable 2700k-6500K/1800K-4000K/Smart Tuya Zigbee ;
This is the parameters of Commercial GU10 lighting series:
Model No. | Power | Lamp Lumen | LED Chip | CRI | CCT | LED Driver | Size |
WY-M2-5W | 5W | 450lm | Bridgelux C6 | RA>90 RA>95 RA>98 | 2700K | Philips | D50*H43mm |
WY-M2-7W | 7W | 650lm | Bridgelux C6 | Osram | D51*H62mm | ||
WY-M2-10W | 10W | 900lm | Bridgelux C8 | Tridonic | D50*H77mm | ||
WY-M1-10W | 10W | 900lm | Bridgelux C8 | LTECH | D50*H62mm | ||
WY-M2-12W | 12W | 1080lm | Bridgelux C8 | Eaglerise | D50*H88mm | ||
WY-M1-15W | 15W | 1300lm | Bridgelux C10 | Lifud | D50*H80mm | ||
WY-M1-20W | 20W | 1800lm | Bridgelux C10 |
| D50*H88mm |
Key Applications
GU10 Module delivers highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.
Package
Power | QTY/CTN(pcs) | GW/CTN(kgs) | Carton Size(cm) |
7W | 60 | 11.70 | L46*W32*H35 |
10W | 60 | 14.45 | L46*W32*H35 |
12W | 60 | 14.45 | L46*W32*H35 |
15W | 48 | 13.90 | L50*W30*H37 |
20W | 48 | 14.50 | L50*W30*H37 |
