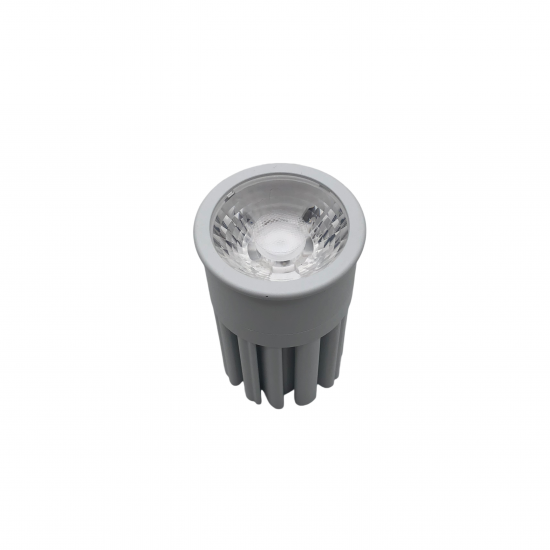

Featuring a unique design and excellent dimming performance, this 7W GU10 LED Module supports 0-10V dimming and is ideal for commercial and residential downlighting. Factory direct supply with customizable options, OEM/ODM support, and No MOQ. Made in China with competitive pricing and reliable quality.
Featuring a unique design and excellent dimming performance, this 7W GU10 LED Module supports 0-10V dimming and is ideal for commercial and residential downlighting. Factory direct supply with customizable options, OEM/ODM support, and No MOQ. Made in China with competitive pricing and reliable quality.
LHWYLED GU10 LED Module 0-10V Dimmable with COB spotlight technology offers smooth dimming performance, high brightness, and excellent thermal management. Designed for commercial and indoor lighting projects, it supports OEM ODM customization and provides an energy-saving replacement solution for traditional GU10 lamps.
LHWYLED GU10 LED Module 0-10V Dimmable with COB spotlight technology offers smooth dimming performance, high brightness, and excellent thermal management. Designed for commercial and indoor lighting projects, it supports OEM ODM customization and provides an energy-saving replacement solution for traditional GU10 lamps.
LHWYLED GU10 LED Module 0-10V Dimmable with COB spotlight technology offers smooth dimming performance, high brightness, and excellent thermal management. Designed for commercial and indoor lighting projects, it supports OEM ODM customization and provides an energy-saving replacement solution for traditional GU10 lamps.
Featuring a unique design and excellent dimming performance, this 7W GU10 LED Module supports 0-10V dimming and is ideal for commercial and residential downlighting. Factory direct supply with customizable options, OEM/ODM support, and No MOQ. Made in China with competitive pricing and reliable quality.
Item NO.:
WY-M9-10WLead Time:
1-3daysProduct Orgin:
ZhongShanBrand:
LHWYLEDShipping Port:
ShenZhen/GuangZhouPayment:
TTColor:
WhiteMOQ:
10Tade Term:
EXW0-10V Dimming GU10 LED Module Advantages:
1. Smooth & Flicker-Free Dimming
Provides stable 0-100% brightness adjustment for a comfortable lighting experience.
2. Low Voltage & Safe Control
Ensures reliable and secure lighting system operation.
3. Energy Saving
Adjusts light output according to different needs, reducing energy consumption.
4. Smart Lighting Compatibility
Easily integrates with sensors and intelligent lighting systems.
5. Ideal for Commercial Applications
Perfect for offices, hotels, retail stores, showrooms, and other professional lighting projects.
The Private Customized GU10 LED Module Advantages:
01. To replace the GU10/MR16 Bulbs;
02: Beam angle by reflector: 15/24/38/60°;
03. Beam angle by lens: 10/15/24/36/60°;
04. Power: 7W 10W 12W;
05. Warranty: 3-5 Years;

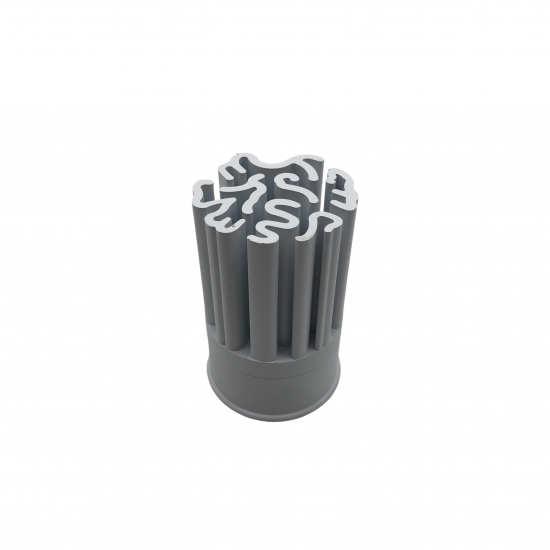

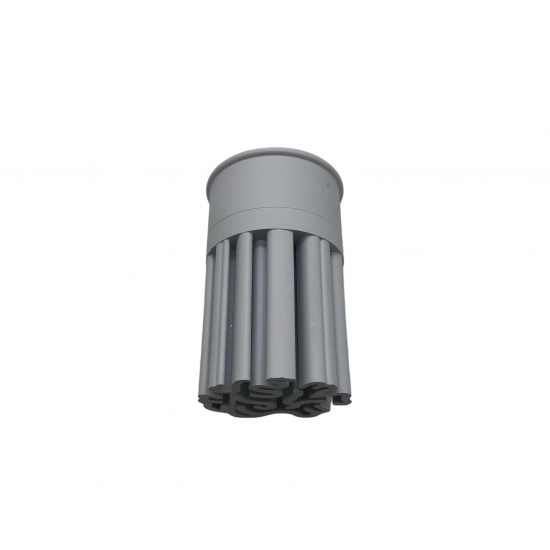

06. Material of heat sink: Cold forging aluminum 1070 pure aluminum;
07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;
08. Outer trim can be white/black;
09. Constant Voltage DC24V/Constant Current Available too;
10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;
11. Laser, Logo, Customized Package and OEM, ODM is optional too;
12. Fast lead time: 1-3 days for under 500pcs;
13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98
14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;
15. Dimming type: 3 in 1 Dimmable (Triac, 3CCT Turnable, 4 Current Adjustable) /0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx /CCT Tunable 2700k-6500K/1800K-4000K/Smart WIFI Tuya Zigbee ;
This is the parameters of the Uniqe Design GU10 LED Module series:
Model No. | Power | Lamp Lumen | LED Chip | CRI | CCT | LED Driver | Size |
WY-M9-7W | 7W | 560lm | Bridgelux C6 | CRI>90 CRI>95 CRI>98 | 3CCT 1800-4000K 2700-4000K 3000-4000K 2700-6000K | Philips Osram Tridonic LTECH Eaglerise Lifud | D50*H50mm |
WY-M9-10W | 10W | 800lm | Bridgelux C8 | D50*H77mm | |||
WY-M9-12W | 12W | 960lm | Bridgelux C8 | D50*H88mm |
Key Applications
GU10 Module delivers highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.
Package
Power | QTY/CTN(pcs) | GW/CTN(kgs) | Carton Size(cm) |
7W | 60 | 11.70 | L46*W32*H35 |
10W | 60 | 14.45 | L46*W32*H35 |
12W | 60 | 14.45 | L46*W32*H35 |
15W | 48 | 13.90 | L50*W30*H37 |
20W | 48 | 14.50 | L50*W30*H37 |
Application
