The 0-10V Dimmable GU10 LED Module advantages:

1. Smooth, Flicker Free Dimming – Provides linear, analog control from 0% to 100% light output without flicker or steps.

2. Wide Dimming Range – Can go down to 0% (off) in many systems, unlike some TRIAC dimmers that have a minimum load.

3. Low Voltage Control – Uses safety extra-low voltage (typically 0–10V DC), making it suitable for damp/wet locations with proper insulation.

4. No Audible Noise – Operates silently, unlike some TRIAC dimmers that may hum or buzz with certain loads.

5. Compatible with Many Drivers – Standard in commercial lighting and widely supported.

6. Simple Wiring – Uses two additional low-voltage wires – easy to integrate with existing 120–277V AC power lines.

7. Multiple Devices on One Controller – Many drivers can be controlled in parallel from a single 0–10V dimmer.

8. Excellent for Commercial Use – Common in offices, schools, hospitals, and warehouses where smooth, reliable dimming is required.

Why Choose WeiYe GU10 LED 0-10V Module?

01. To replace the GU10/MR16 Bulbs;

02: Beam angle by reflector: 15/24/38/60°;

03. Beam angle by lens: 10/15/24/36/60°;

04. Power: 7W 9W 10W 12W 15W 20W;

05. Warranty: 3-5 Years;

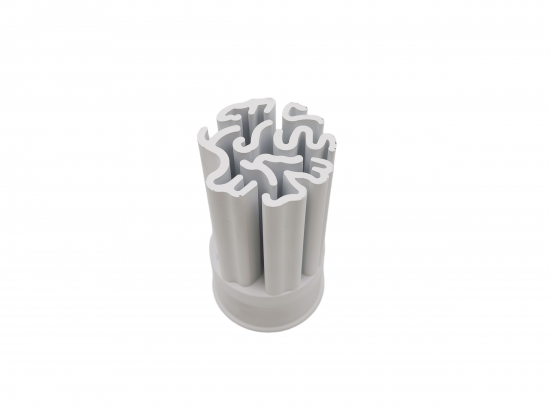

06. Material of heat sink: Cold forging aluminum 1070 pure aluminum;

07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;

08. Outer trim can be white/black;

09. Constant Voltage DC24V/Constant Current Available too;

10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;

11. Laser, Logo, Customized Package and OEM, ODM is optional too;

12. Fast lead time: 1-3 days for under 500pcs;

13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98

14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;

15. Dimmable type: 3 in 1 Dimmable (Triac, 3CCT Turnable, 4 Current Adjustable) /0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx /CCT Tunable 2700k-6500K/1800K-4000K/Smart WIFI Tuya Zigbee ;

This is the parameters of  New Design GU10 LED Module series:

Hot Selling 0-10V GU10 LED Module Key Applications

GU10 Module delivers highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.
