The DC24V GU10 LED Module 12W is a premium low-voltage lighting solution designed for modern architectural and commercial applications. Featuring high efficiency, excellent light quality, and reliable performance, it delivers comfortable illumination with long-lasting durability, making it ideal for hospitality, retail, residential, and smart light1
The DC24V GU10 LED Module 10W is a premium low-voltage lighting solution designed for modern architectural and commercial applications. Featuring high efficiency, excellent light quality, and reliable performance, it delivers comfortable illumination with long-lasting durability, making it ideal for hospitality, retail, residential, and smart light1
The DC24V GU10 LED Module 10W is a premium low-voltage lighting solution designed for modern architectural and commercial applications. Featuring high efficiency, excellent light quality, and reliable performance, it delivers comfortable illumination with long-lasting durability, making it ideal for hospitality, retail, residential, and smart light1
The DC24V GU10 LED Module 7W is a premium low-voltage lighting solution designed for modern architectural and commercial applications. Featuring high efficiency, excellent light quality, and reliable performance, it delivers comfortable illumination with long-lasting durability, making it ideal for hospitality, retail, residential, and smart lighti1
The DALI DT8 3CCT Tunable IP65 Waterproof GU10 LED Module 12W is a smart and energy-efficient lighting solution featuring 3000K/4000K/6000K tunable white control, smooth dimming, and high visual comfort. With an IP65 waterproof rating, it is ideal for bathrooms, hotels, retail spaces, and other indoor or semi-outdoor applications, delivering reliab1
Item NO.:
WY-M1-20WLead Time:
1-3 daysProduct Orgin:
ZhongShanBrand:
LHWYLEDShipping Port:
ShenZhen/GuangZhouPayment:
TTColor:
BlackMOQ:
10Tade Term:

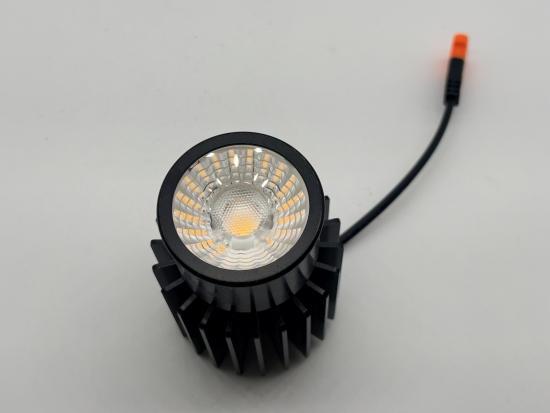

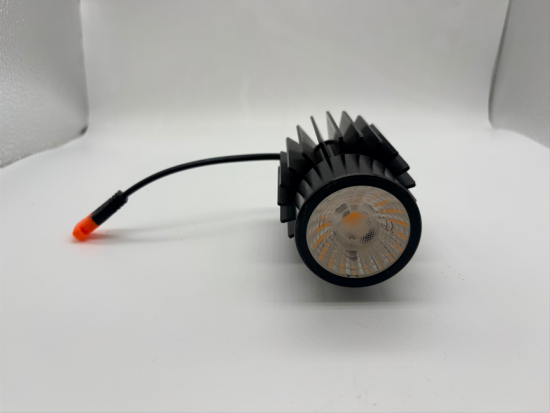

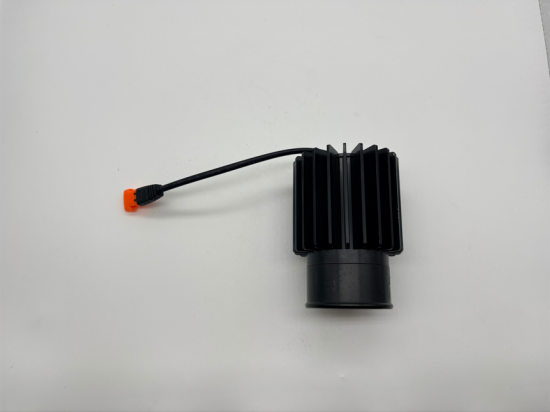

EXWThe Dimmable GU10 module advantages:
01. To replace the GU10/MR16 Bulb;
02: Beam angle by reflector: 15/24/38/60°;
03. Beam angle by lens: 10/15/24/36/60°;
04. Power: 7W 9W 10W 12W 15W 20W;
05. Warranty: 3-5 Years;
06. Material of heat sink: Cold forging aluminum 1070 pure aluminum;
07. The honeycomb/Clear Glass cover is available too;
08. Outer trim can be whte/black;
09. Constant Voltage DC24V/Constant Current Available too;
10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;
11. Laser, Logo, Customized Package is available too;
12. Fast lead time: 1-3 days for under 500pcs;
13. High quality with CREE/ Citizen/Bridgelux LED chip RA90 or RA95 or RA98
14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;
15. Dimming type: 0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx/CCT Tunable 2700k-6500K/1800K-4000K/Smart Tuya Zigbee ;
This is the parameters of Energy saving GU10 LED module series:
|
Model No. |
Power |
Lamp Lumen |
LED Chip |
CRI |
CCT |
LED Driver |
Size |
|
WY-M2-5W |
5W |
450lm |
Bridgelux C6 |
RA>90 RA>95 RA>98 |
2700K |
Philips |
D50*H43mm |
|
WY-M2-7W |
7W |
650lm |
Bridgelux C6 |
Osram |
D51*H62mm |
||
|
WY-M2-10W |
10W |
900lm |
Bridgelux C8 |
Tridonic |
D50*H77mm |
||
|
WY-M1-10W |
10W |
900lm |
Bridgelux C8 |
LTECH |
D50*H62mm |
||
|
WY-M2-12W |
12W |
1080lm |
Bridgelux C8 |
Eaglerise |
D50*H88mm |
||
|
WY-M1-15W |
15W |
1300lm |
Bridgelux C10 |
Lifud |
D50*H80mm |
||
|
WY-M1-20W |
20W |
1800lm |
Bridgelux C10 |
|
D50*H88mm |
