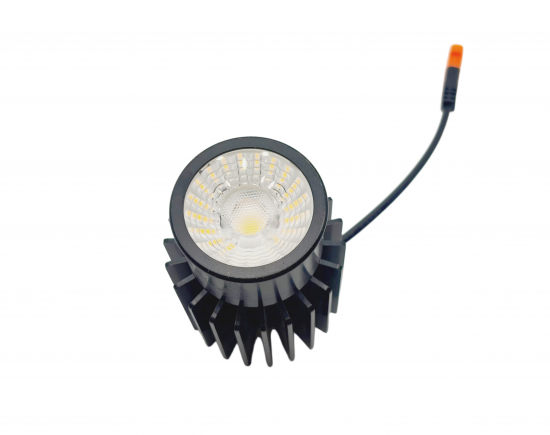

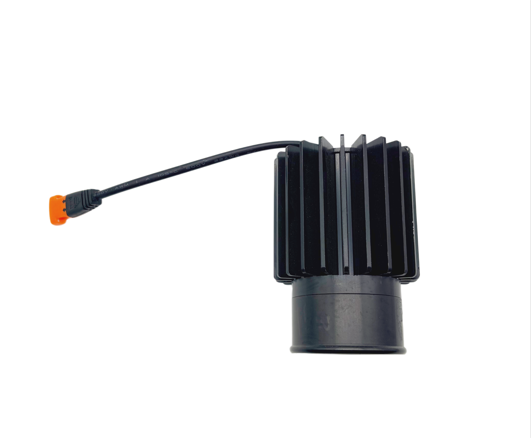

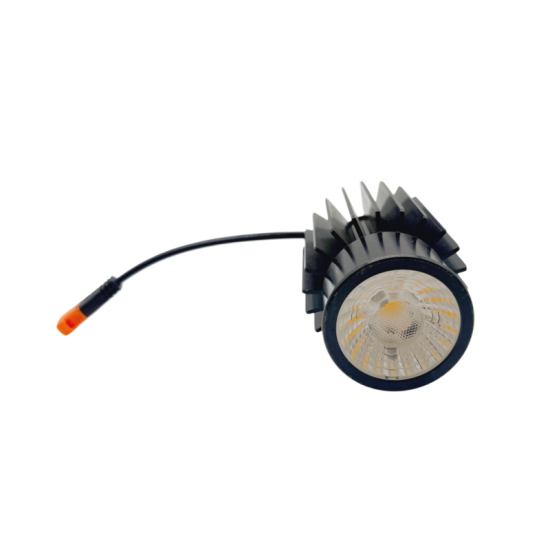

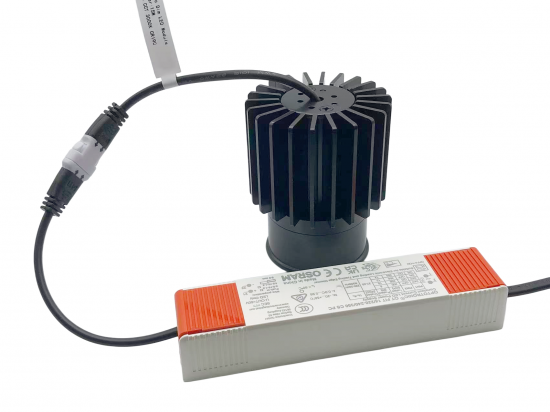

Triac Dimmable 20W GU10 MR16 LED Module Warm White COB Dimmable 220V Recessed Modern Office Bedroom Hotel

Triac Dimmable GU10 MR16 LED Module 20W is a high-performance LED lighting component designed for energy-efficient and flexible illumination. It supports Triac dimming, allowing smooth adjustment of brightness with standard dimmers. Featuring a GU10 or MR16 base, the module is suitable for retrofit or new installations in residential, commercial, or hospitality settings.

  • Item NO.:

    LHWY-M1-20W
  • Lead Time:

    1-3 Days
  • Product Orgin:

    ZhongShan
  • Brand:

    LHWYLED
  • Shipping Port:

    ShenZhen/GuangZhou
  • Payment:

    TT
  • Color:

    Black
  • MOQ:

    10
  • Tade Term:

    EXW
Inquiry now
DESCRIPTION

The Triac Dimmable GU10 LED Module advantages:


01. To replace the GU10/MR16 Bulbs;

02: Beam angle by reflector: 15/24/38/60°;

03. Beam angle by lens: 10/15/24/36/60°;

04. Power: 7W 9W 10W 12W 15W 20W;

05. Warranty: 3-5 Years;

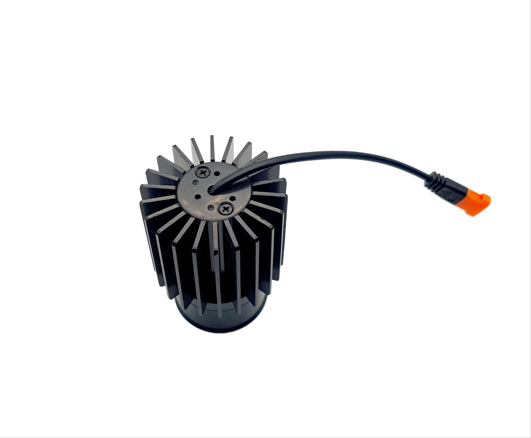

06. Material of heat sink: Cold forging aluminum 1070 pure aluminum;

07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;

08. Outer trim can be white/black;

09. Constant Voltage DC24V/Constant Current Available too;

10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;

11. Laser, Logo, Customized Package and OEM, ODM is optional too;

12. Fast lead time: 1-3 days for under 500pcs;

13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98

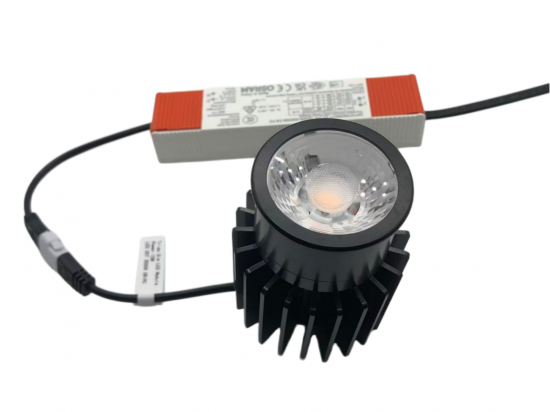

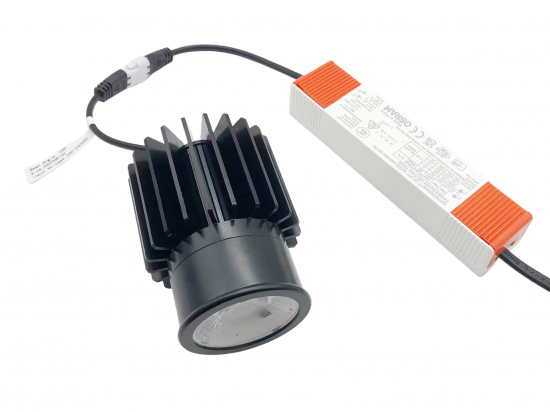

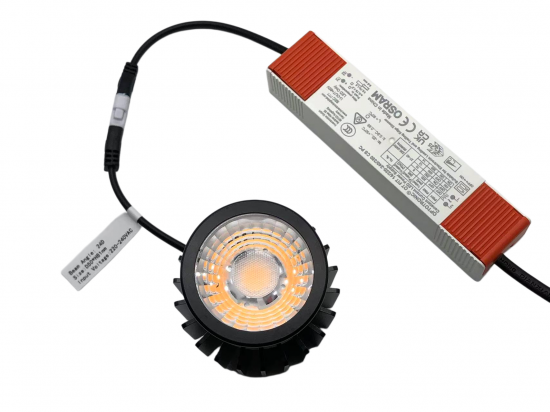

14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;

15. Dimmable type: 3 in 1 Dimmable (Triac, 3CCT Turnable, 4 Current Adjustable) /0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx /CCT Tunable 2700k-6500K/1800K-4000K/Smart WIFI Tuya Zigbee ;



This is the parameters of High CRI Triac Dim GU10 Module series:



Model No.

Power

Lamp Lumen

LED Chip

CRI

CCT

LED Driver

Size

WY-M2-5W

5W

450lm

Bridgelux C6

RA>90 RA>95 RA>98

2700K
3000K
3500K
4000K
5000K
5700K
6500K

Philips

D50*H43mm

WY-M2-7W

7W

650lm

Bridgelux C6

Osram

D51*H62mm

WY-M2-10W

10W

900lm

Bridgelux C8

Tridonic

D50*H77mm

WY-M1-10W

10W

900lm

Bridgelux C8

LTECH

D50*H62mm

WY-M2-12W

12W

1080lm

Bridgelux C8

Eaglerise

D50*H88mm

WY-M1-15W

15W

1300lm

Bridgelux C10

Lifud

D50*H80mm

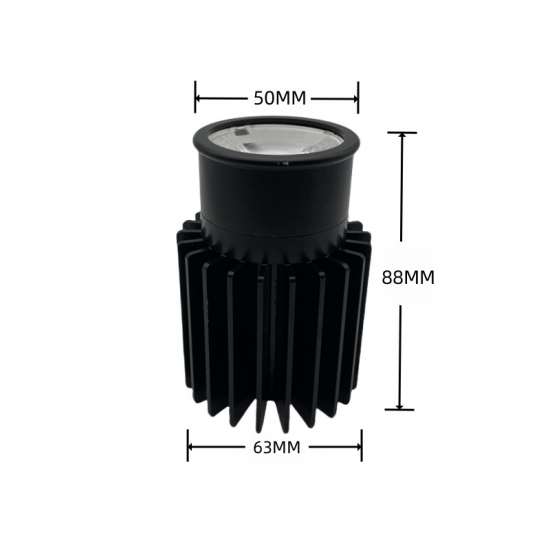

WY-M1-20W

20W

1800lm

Bridgelux C10


D50*H88mm


Key Applications


GU10 Module delivers highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.


Package


Power

QTY/CTN(pcs)

GW/CTN(kgs)

Carton Size(cm)

7W

60

11.70

L46*W32*H35

10W

60

14.45

L46*W32*H35

12W

60

14.45

L46*W32*H35

15W

48

13.90

L50*W30*H37

20W

48

14.50

L50*W30*H37
