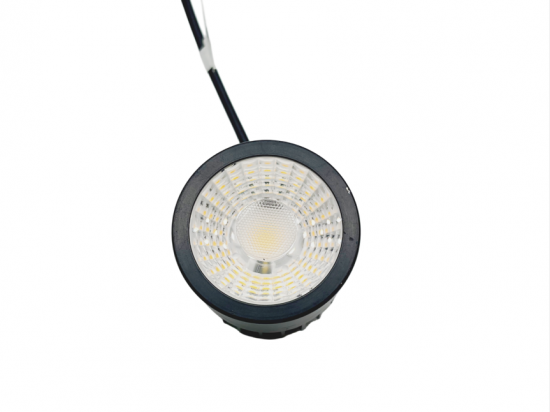

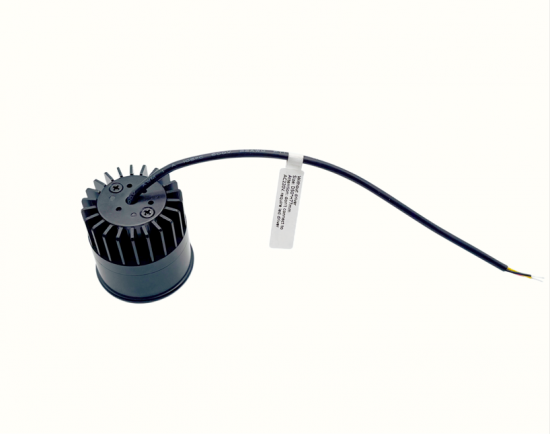

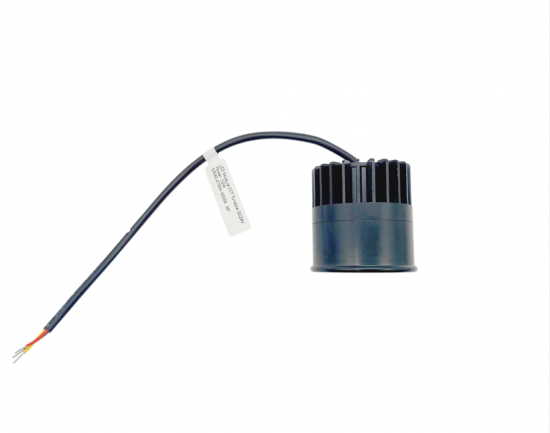

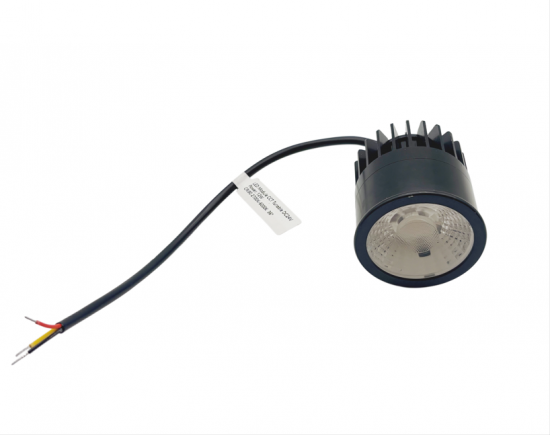

WeiYe Triac Dimmable GU10 LED Module 7W, which can transform your lighting solutions, now featuring Triac dimming capability. Easily replace traditional halogen bulbs and achieve precise brightness control for any ambiance. This module is engineered from cold forging pure aluminum 1070, ensuring exceptional heat dissipation and reliability. Enjoy brilliant illumination, seamless dimming experience, and significant energy savings in one advanced lighting product.
Item NO.:
WY-M2-7WLead Time:
1-3 DaysProduct Orgin:
ZhongShanBrand:
LHWYLEDShipping Port:
ShenZhen/GuangZhouPayment:
TTColor:
BlackMOQ:
500Tade Term:
EXWThe Triac Dimmable GU10 LED Module advantages:
01. To replace the GU10/MR16 Bulbs;
02: Beam angle by reflector: 15/24/38/60°;
03. Beam angle by lens: 10/15/24/36/60°;
04. Power: 7W 9W 10W 12W 15W 20W;
05. Warranty: 3-5 Years;
06. Material of heat sink: Cold forging aluminum 1070 pure aluminum;
07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;
08. Outer trim can be white/black;
09. Constant Voltage DC24V/Constant Current Available too;
10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;
11. Laser, Logo, Customized Package and OEM, ODM is optional too;
12. Fast lead time: 1-3 days for under 500pcs;
13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98
14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;
15. Dimmable type: 3 in 1 Dimmable (Triac, 3CCT Turnable, 4 Current Adjustable) /0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx /CCT Tunable 2700k-6500K/1800K-4000K/Smart WIFI Tuya Zigbee ;
This is the parameters of Commercial GU10 Module series:
Model No. | Power | Lamp Lumen | LED Chip | CRI | CCT | LED Driver | Size |
WY-M2-5W | 5W | 450lm | Bridgelux C6 | RA>90 RA>95 RA>98 | 2700K | Philips | D50*H43mm |

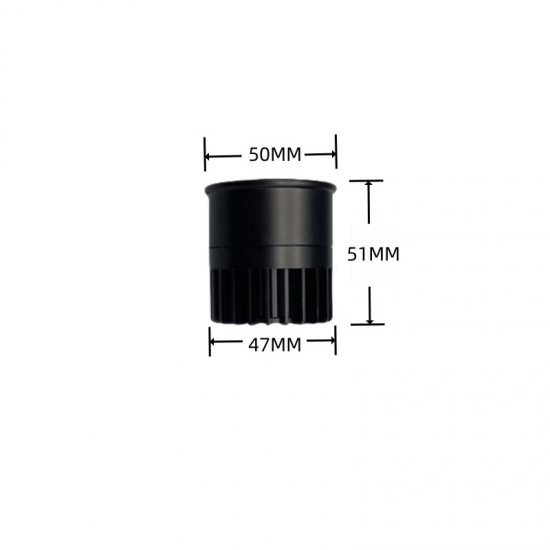

WY-M2-7W | 7W | 650lm | Bridgelux C6 | Osram | D51*H62mm | ||
WY-M2-10W | 10W | 900lm | Bridgelux C8 | Tridonic | D50*H77mm | ||
WY-M1-10W | 10W | 900lm | Bridgelux C8 | LTECH | D50*H62mm | ||
WY-M2-12W | 12W | 1080lm | Bridgelux C8 | Eaglerise | D50*H88mm | ||
WY-M1-15W | 15W | 1300lm | Bridgelux C10 | Lifud | D50*H80mm | ||
WY-M1-20W | 20W | 1800lm | Bridgelux C10 | D50*H88mm |
Key Applications
GU10 Module delivers highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.
Package
Power | QTY/CTN(pcs) | GW/CTN(kgs) | Carton Size(cm) |
7W | 60 | 11.70 | L46*W32*H35 |
10W | 60 | 14.45 | L46*W32*H35 |
12W | 60 | 14.45 | L46*W32*H35 |
15W | 48 | 13.90 | L50*W30*H37 |
20W | 48 | 14.50 | L50*W30*H37 |
