LHWYLED GU10 LED Module 0-10V Dimmable with COB spotlight technology offers smooth dimming performance, high brightness, and excellent thermal management. Designed for commercial and indoor lighting projects, it supports OEM ODM customization and provides an energy-saving replacement solution for traditional GU10 lamps.
LHWYLED GU10 LED Module 0-10V Dimmable with COB spotlight technology offers smooth dimming performance, high brightness, and excellent thermal management. Designed for commercial and indoor lighting projects, it supports OEM ODM customization and provides an energy-saving replacement solution for traditional GU10 lamps.
LHWYLED GU10 LED Module 0-10V Dimmable with COB spotlight technology offers smooth dimming performance, high brightness, and excellent thermal management. Designed for commercial and indoor lighting projects, it supports OEM ODM customization and provides an energy-saving replacement solution for traditional GU10 lamps.
LHWYLED GU10 LED Module 7W 0-10V Dimmable with COB spotlight technology offers smooth dimming performance, high brightness, and excellent thermal management. Designed for commercial and indoor lighting projects, it supports OEM ODM customization and provides an energy-saving replacement solution for traditional GU10 lamps.
IP65 Waterproof GU10 LED Module 12W features a high-quality COB light source and durable die-casting aluminum housing, providing excellent heat dissipation and long lifespan. With Triac dimmable function and IP65 waterproof protection, it is ideal for bathroom, wet area, residential and commercial recessed lighting applications. OEM & ODM custo1
This high-performance LED module 10W features original Bridgelux C8 COB technology, delivering superior brightness and energy efficiency. Designed for recessed downlights and spotlights, it offers smooth Triac dimming, tailoring light intensity for any environment. Its GU10/MR16 compatibility ensures easy installation, making it ideal for residential and commercial lighting projects. The warm white output creates a cozy atmosphere, perfect for living rooms, bedrooms, and hospitality spaces.
Item NO.:
WY-M2-10WLead Time:
1-3 DaysProduct Orgin:
ZhongShanBrand:
LHWYLEDShipping Port:
ShenZhen/GuangZhouPayment:
TTColor:
BlackMOQ:
500Tade Term:
EXWThe Triac Dimming GU10 LED Module advantages:
01. To replace the GU10/MR16 Bulbs;
02: Beam angle by reflector: 15/24/38/60°;
03. Beam angle by lens: 10/15/24/36/60°;
04. Power: 7W 9W 10W 12W 15W 20W;
05. Warranty: 3-5 Years;
06. Material of heat sink: Cold forging aluminum 1070 pure aluminum;
07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;
08. Outer trim can be white/black;
09. Constant Voltage DC24V/Constant Current Available too;
10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;
11. Laser, Logo, Customized Package and OEM, ODM is optional too;
12. Fast lead time: 1-3 days for under 500pcs;
13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98
14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;
15. Dimmable type: 3 in 1 Dimmable (Triac, 3CCT Turnable, 4 Current Adjustable) /0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx /CCT Tunable 2700k-6500K/1800K-4000K/Smart WIFI Tuya Zigbee ;
This is the parameters of High Quaity Triac Dim GU10 Module series:
Model No. | Power | Lamp Lumen | LED Chip | CRI | CCT | LED Driver | Size |
WY-M2-5W | 5W | 450lm | Bridgelux C6 | RA>90 RA>95 RA>98 | 2700K | Philips | D50*H43mm |
WY-M2-7W | 7W | 650lm | Bridgelux C6 | Osram | D51*H62mm | ||

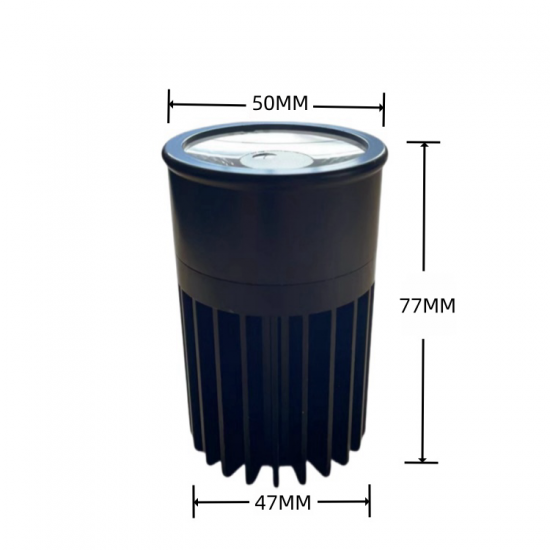

WY-M2-10W | 10W | 900lm | Bridgelux C8 | Tridonic | D50*H77mm | ||
WY-M1-10W | 10W | 900lm | Bridgelux C8 | LTECH | D50*H62mm | ||
WY-M2-12W | 12W | 1080lm | Bridgelux C8 | Eaglerise | D50*H88mm | ||
WY-M1-15W | 15W | 1300lm | Bridgelux C10 | Lifud | D50*H80mm | ||
WY-M1-20W | 20W | 1800lm | Bridgelux C10 | D50*H88mm |
Key Applications
GU10 Module delivers highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.
Package
Power | QTY/CTN(pcs) | GW/CTN(kgs) | Carton Size(cm) |
7W | 60 | 11.70 | L46*W32*H35 |
10W | 60 | 14.45 | L46*W32*H35 |
12W | 60 | 14.45 | L46*W32*H35 |
15W | 48 | 13.90 | L50*W30*H37 |
20W | 48 | 14.50 | L50*W30*H37 |
prev :
Triac Dimmable 15W GU10 MR16 LED Module Original Bridgelux C10 Warm White Recessed Downlight High CRINext :
Triac Dimmable 10W GU10 MR16 COB LED Module Spotlight Replacement with Unique Design 50000 Hours 5 years Warranty
