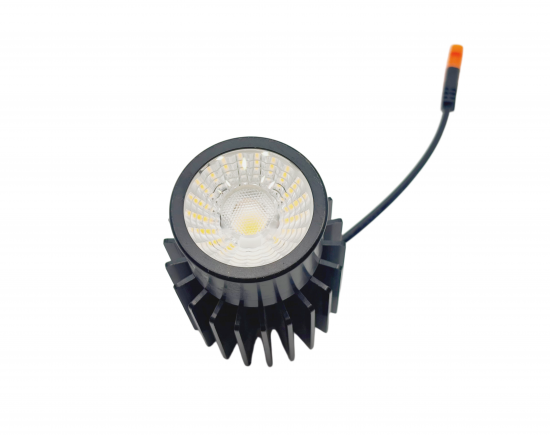

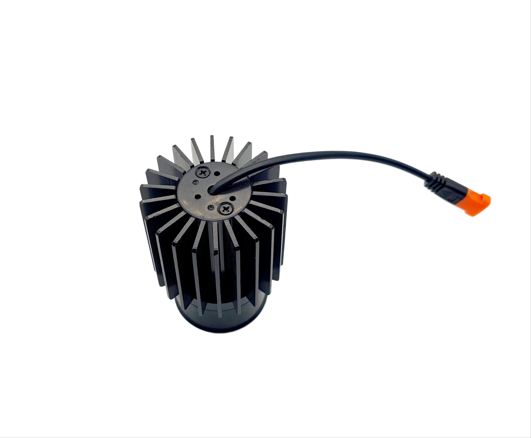

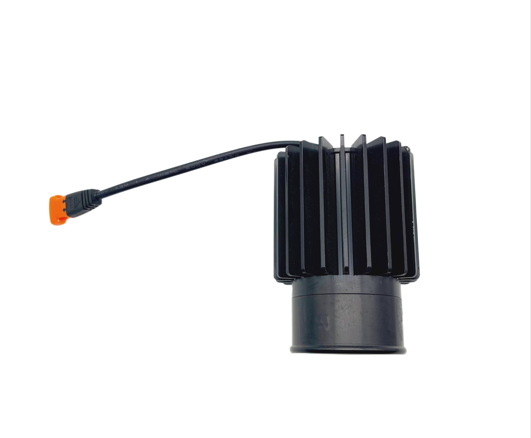

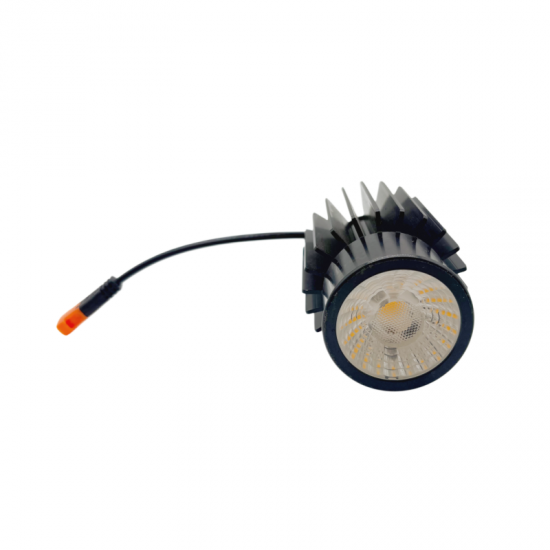

DALI DT6 Single Color GU10 LED Module 20W offers efficient, dimmable lighting for smart indoor environments. Supporting DALI DT6 protocol, this 7W GU10 module provides stable single-color illumination, high energy efficiency, and seamless integration with intelligent lighting systems. Ideal for residential, office, and commercial downlight applications.
Item NO.:
WY-M1-20WLead Time:
1-3 DaysProduct Orgin:
ZhongShanBrand:
LHWYLEDShipping Port:
ShenZhen/GuangZhouPayment:
TTColor:
BlackMOQ:
10Tade Term:
EXWThe DALI DT6 Single Color GU10 LED Module with Sunricher Driver advantages:
1. Excellent Dimming Performance
Supports 0.1%–100% deep dimming with 256+ step smooth transitions – no flicker, constant color temperature throughout.
2. Simple Installation, No Load Matching
2-wire parallel bus, up to 300m cable runs, no minimum load required – works reliably even with a single GU10 LED module 20W.
3. Flexible Control with Scenes & Automation
Supports grouping, scene presets, scheduling, and sensor integration for intelligent lighting control.
4. Bidirectional Communication for Easy Maintenance
Advanced systems allow lamp failure feedback – controller can automatically flag faulty fixtures, reducing maintenance costs.
5. International Standard, Cross-Brand Compatible
Complies with IEC 62386-207 – interoperable across major global brands; drivers, controllers, and sensors can be mixed.
6. Cost-Effective, Stable & Reliable
Lower hardware cost than DT8/RGB, simple commissioning, and fewer failure points due to single-channel logic – reliable long-term operation.
Why Choose WeiYe GU10 LED DALI DT6 Single Color Module?
01. To replace the GU10/MR16 Bulbs;
02: Beam angle by reflector: 15/24/38/60°;
03. Beam angle by lens: 10/15/24/36/60°;
04. Power: 7W 9W 10W 12W 15W 20W;
05. Warranty: 3-5 Years;
06. Material of heat sink: Cold forging aluminum 1070 pure aluminum;
07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;
08. Outer trim can be white/black;
09. Constant Voltage DC24V/Constant Current Available too;
10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;
11. Laser, Logo, Customized Package and OEM, ODM is optional too;
12. Fast lead time: 1-3 days for under 500pcs;
13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98
14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;
15. Dimmable type: 3 in 1 Dimmable (Triac, 3CCT Turnable, 4 Current Adjustable) /0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx /CCT Tunable 2700k-6500K/1800K-4000K/Smart WIFI Tuya Zigbee ;
This is the parameters of Commercial GU10 Module series:
Model No. | Power | Lamp Lumen | LED Chip | CRI | CCT | LED Driver | Size |
WY-M2-5W | 5W | 450lm | Bridgelux C6 | RA>90 RA>95 RA>98 | 2700K | Philips | D50*H43mm |
WY-M2-7W | 7W | 650lm | Bridgelux C6 | Osram | D50*H51mm | ||
WY-M2-10W | 10W | 900lm | Bridgelux C8 | Tridonic | D50*H77mm | ||
WY-M1-10W | 10W | 900lm | Bridgelux C8 | LTECH | D50*H62mm | ||
WY-M2-12W | 12W | 1080lm | Bridgelux C8 | Eaglerise | D50*H88mm | ||
WY-M1-15W | 15W | 1300lm | Bridgelux C10 | Lifud | D50*H81mm | ||

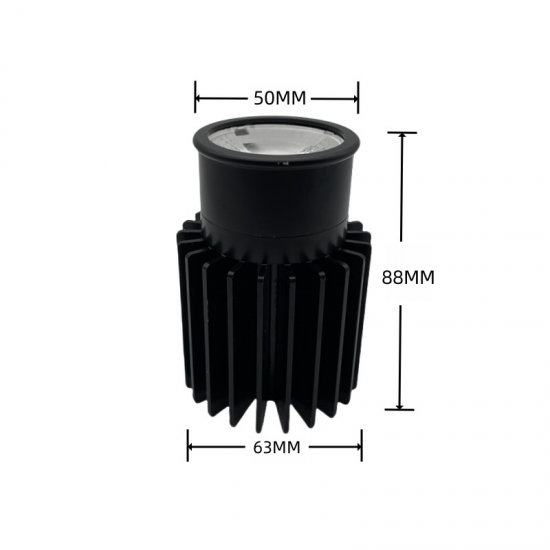

WY-M1-20W | 20W | 1800lm | Bridgelux C10 | D50*H88mm |
Hot Selling 0-10V GU10 LED Module Key Applications
GU10 Module delivers highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.
Package
Power | QTY/CTN(pcs) | GW/CTN(kgs) | Carton Size(cm) |
7W | 60 | 11.70 | L46*W32*H35 |
10W | 60 | 14.45 | L46*W32*H35 |
12W | 60 | 14.45 | L46*W32*H35 |
15W | 48 | 13.90 | L50*W30*H37 |
20W | 48 | 14.50 | L50*W30*H37 |
