This 12W GU10 LED module features DALI DT6 single-channel dimming, IP65 waterproof rating, and a patent design. Ideal for wet or dusty environments, it delivers smooth, flicker-free dimming with reliable single-color output for both indoor and semi-outdoor applications.
This 7W GU10 LED module features DALI DT6 single-channel dimming, IP65 waterproof rating, and a patent design. Ideal for wet or dusty environments, it delivers smooth, flicker-free dimming with reliable single-color output for both indoor and semi-outdoor applications.
This 7W GU10 LED module features DALI DT6 single-channel dimming, IP65 waterproof rating, and a patent design. Ideal for wet or dusty environments, it delivers smooth, flicker-free dimming with reliable single-color output for both indoor and semi-outdoor applications.
This 12W DALI DT6 single color GU10 LED module is IP44 rated and built with a patented design for superior heat dissipation. It supports 350mA/700mA constant current, offers smooth DALI dimming down to 1%, and is suitable for track lighting, downlights, and commercial spotlights with CE and RoHS compliance.
This 7W DALI DT6 single color GU10 LED module is IP44 rated and built with a patented design for superior heat dissipation. It supports 350mA/700mA constant current, offers smooth DALI dimming down to 1%, and is suitable for track lighting, downlights, and commercial spotlights with CE and RoHS compliance.
This 7W DALI DT6 single color GU10 LED module is IP44 rated and built with a patented design for superior heat dissipation. It supports 350mA/700mA constant current, offers smooth DALI dimming down to 1%, and is suitable for track lighting, downlights, and commercial spotlights with CE and RoHS compliance.
Item NO.:
WY-M9-7WLead Time:
1-3 DaysProduct Orgin:
ZhongShanBrand:
LHWYLEDShipping Port:
ShenZhen/GuangZhouPayment:
TTColor:
WhiteMOQ:
10Tade Term:
EXWThe DALI DT6 Single Color IP44 Patent GU10 LED Module advantages:
1. Excellent Dimming Performance
Supports 0.1%–100% deep dimming with 256+ step smooth transitions – no flicker, constant color temperature throughout.
2. Simple Installation, No Load Matching
2-wire parallel bus, up to 300m cable runs, no minimum load required – works reliably even with a single 5W GU10.
3. Flexible Control with Scenes & Automation
Supports grouping, scene presets, scheduling, and sensor integration for intelligent lighting control.
4. Bidirectional Communication for Easy Maintenance
Advanced systems allow lamp failure feedback – controller can automatically flag faulty fixtures, reducing maintenance costs.
5. International Standard, Cross-Brand Compatible
Complies with IEC 62386-207 – interoperable across major global brands; drivers, controllers, and sensors can be mixed.
6. Cost-Effective, Stable & Reliable
Lower hardware cost than DT8/RGB, simple commissioning, and fewer failure points due to single-channel logic – reliable long-term operation.
Why Choose WeiYe GU10 LED DALI DT6 Single Color Module?
01. To replace the GU10/MR16 Bulbs;
02. Beam angle by reflector: 15/24/38/60°;
03. Beam angle by lens: 10/15/24/36/60°;
04. Power: 7W 10W 12W;
05. Warranty: 3-5 Years;

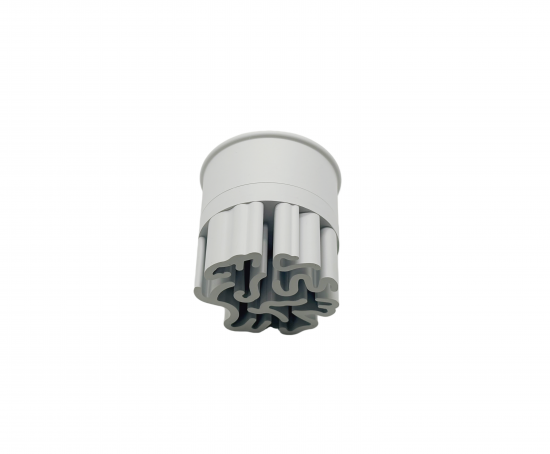

06. Material of heat sink: Cold forging aluminum 1070 pure aluminum;
07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;
08. Outer trim can be white/black;
09. Constant Voltage DC24V/Constant Current Available too;
10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;
11. Laser, Logo, Customized Package and OEM, ODM is optional too;
12. Fast lead time: 1-3 days for under 500pcs;
13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98
14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;
15. Dimmable type: 3 in 1 Dimmable (Triac, 3CCT Turnable, 4 Current Adjustable) /0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx /CCT Tunable 2700k-6500K/1800K-4000K/Smart WIFI Tuya Zigbee ;
This is the parameters of New Design GU10 LED Module series:
Model No. | Power | Lamp Lumen | LED Chip | CRI | CCT | LED Driver | Size |

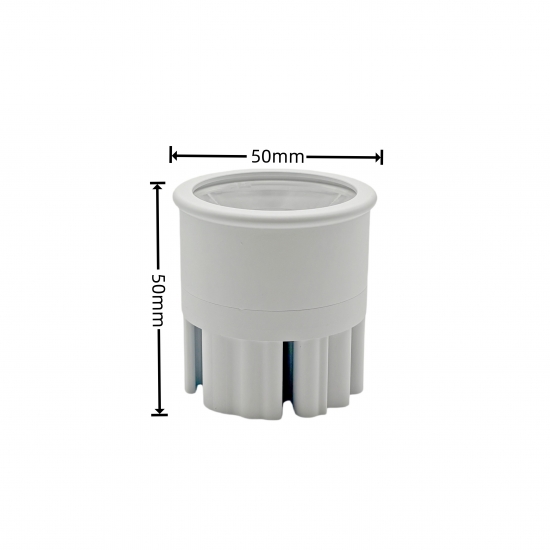

WY-M9-7W | 7W | 560lm | Bridgelux C6 | CRI>90 CRI>95 CRI>98 | Single Color3CCT 1800-4000K 2700-4000K 3000-4000K 2700-6000K | Philips Osram Tridonic LTECH Eaglerise Lifud | D50*H50mm |
WY-M9-10W | 10W | 800lm | Bridgelux C8 | D50*H77mm | |||
WY-M9-12W | 12W | 960lm | Bridgelux C8 | D50*H88mm |
Hot Selling 0-10V GU10 LED Module Key Applications
GU10 Module delivers highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.
Package
Power | QTY/CTN(pcs) | GW/CTN(kgs) | Carton Size(cm) |
7W | 60 | 11.70 | L46*W32*H35 |
10W | 60 | 14.45 | L46*W32*H35 |
12W | 60 | 14.45 | L46*W32*H35 |
15W | 48 | 13.90 | L50*W30*H37 |
20W | 48 | 14.50 | L50*W30*H37 |
