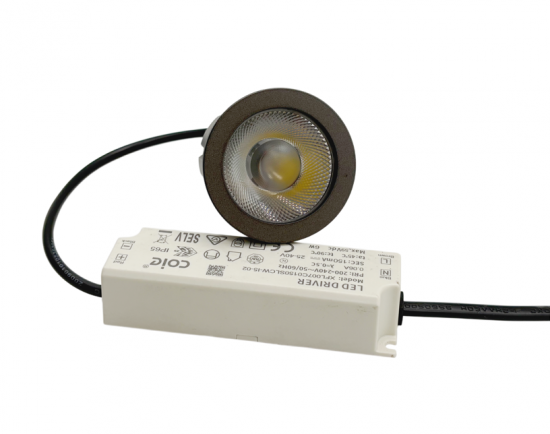

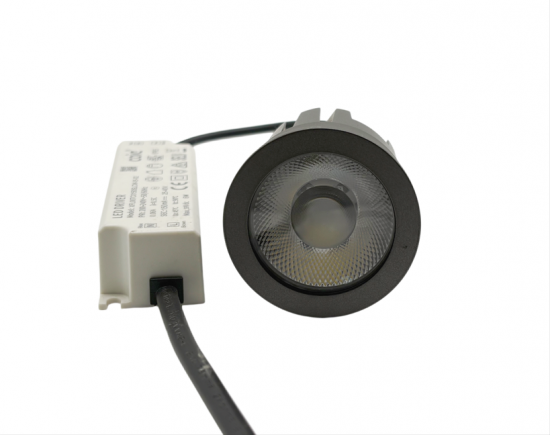

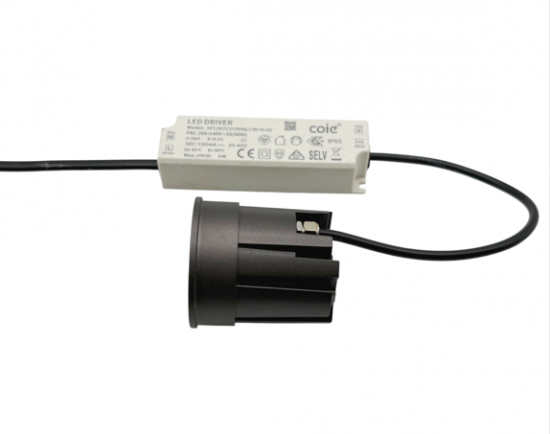

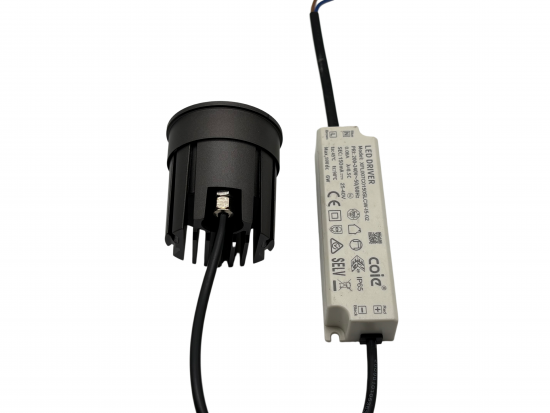

The DALI DT8 3CCT Tunable GU10 LED Module with Sunricher Driver advantages:

1. Single address for brightness & CCT

One DALI address controls both 0–100% dimming and 2700K–6500K color temperature, saving bus address resources.

2. Smooth, flicker-free tunable white

Seamless warm-to-cool white transition with no flicker or jumping – ideal for human-centric lighting (HCL).

3. Simple commissioning

Controller sends target CCT and brightness; driver handles internal mixing – no complex logic required.

4. Supports human-centric lighting (HCL)

Mimics natural daylight changes: cool white for focus during the day, warm white for relaxation in the evening.

5. Saves wiring & hardware costs

One GU10 module replaces two fixed-CCT fixtures; simple 2-wire DALI bus is all you need.

6. Ideal for dynamic scenes

Perfect for hotels, offices, retail, museums, and high-end residential applications requiring CCT changes.

7. Standardized & interoperable

Complies with IEC 62386-209 (DT8), compatible with major DALI-2 control systems and sensors.

8. GU10 form factor, easy retrofit

Fits standard GU10 sockets – ideal for track lights, spotlights, and downlights.

Why Choose WeiYe GU10 LED DALI DT8 3CCT Tunable GU10 LED Module?

01. To replace the GU10/MR16 Bulbs;

02. Beam angle by reflector: 15/24/36/60°;

03. Beam angle by lens: 10/15/24/36/60°;

04. Power: 7W 9W 12W;

05. Warranty: 3-5 Years;

06. Material of heat sink: Cold forging aluminum 1070 pure aluminum;

07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;

08. Outer trim can be white/black;

09. Constant Voltage DC24V/Constant Current Available too;

10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;

11. Laser, Logo, Customized Package and OEM, ODM is optional too;

12. Fast lead time: 1-3 days for under 500pcs;

13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98

14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;

15. Dimmable type: 3 in 1 Dimmable (Triac, 3CCT Turnable, 4 Current Adjustable) /0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx /CCT Tunable 2700k-6500K/1800K-4000K/Smart WIFI Tuya Zigbee ;

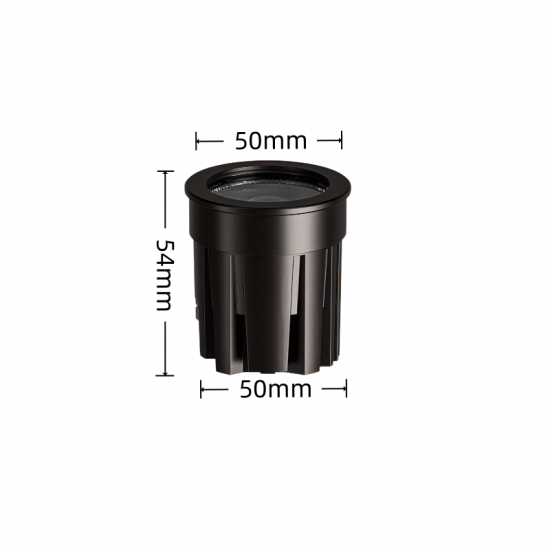

This is the parameters of the IP65 GU10 LED Module series:

Key Applications

GU10 Module delivers highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.
