DALI DT8 3CCT Tunable Patent Design IP44 GU10 LED Module 12W is a high-performance smart lighting solution designed for both residential and commercial applications. Featuring a patented design and DALI DT8 tunable white technology, it allows seamless switching between 3000K, 4000K, and 6000K color temperatures to create the ideal lighting atmosphe1
DALI DT8 3CCT Tunable Patent Design IP44 GU10 LED Module 10W is a high-performance smart lighting solution designed for both residential and commercial applications. Featuring a patented design and DALI DT8 tunable white technology, it allows seamless switching between 3000K, 4000K, and 6000K color temperatures to create the ideal lighting atmosphe1
DALI DT8 3CCT Tunable Patent Design IP44 GU10 LED Module 7W is a high-performance smart lighting solution designed for both residential and commercial applications. Featuring a patented design and DALI DT8 tunable white technology, it allows seamless switching between 3000K, 4000K, and 6000K color temperatures to create the ideal lighting atmospher1
This 20W DALI DT8 GU10 LED module features 3CCT tunable white control, allowing smooth adjustment between 2700K, 4000K, and 6500K. With DALI DT8 protocol support, high CRI>90, flicker-free dimming down to 1%, and 1750lm output, it is perfect for hospitality, retail, museum, and smart home lighting applications.
This 15W DALI DT8 GU10 LED module features 3CCT tunable white control, allowing smooth adjustment between 2700K, 4000K, and 6500K. With DALI DT8 protocol support, high CRI>90, flicker-free dimming down to 1%, and 1350lm output, it is perfect for hospitality, retail, museum, and smart home lighting applications.

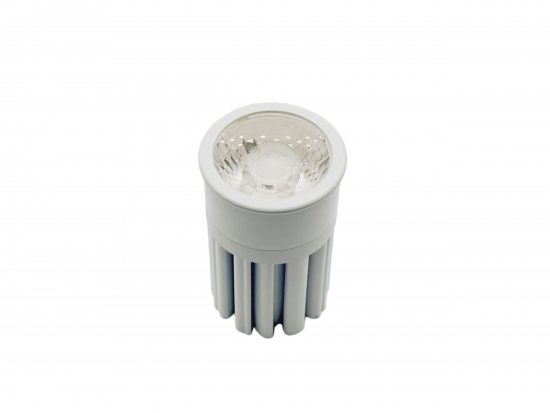

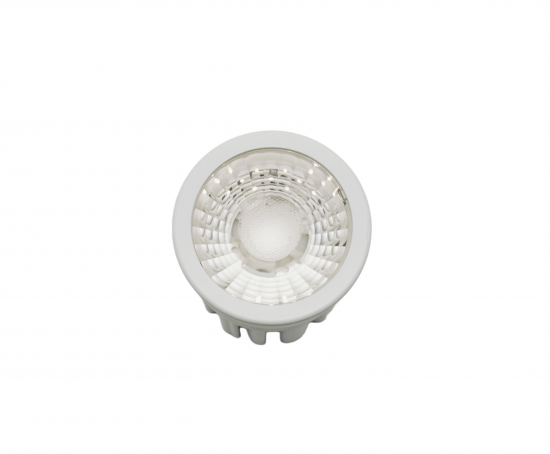

DALI DT8 3CCT Tunable Patent Design IP44 GU10 LED Module 12W is a high-performance smart lighting solution designed for both residential and commercial applications. Featuring a patented design and DALI DT8 tunable white technology, it allows seamless switching between 3000K, 4000K, and 6000K color temperatures to create the ideal lighting atmosphere for different environments.
Item NO.:
WY-M9-12WLead Time:
1-3 DaysProduct Orgin:
ZhongShanBrand:
LHWYLEDShipping Port:
ShenZhen/GuangZhouPayment:
TTColor:
WhiteMOQ:
10Tade Term:
EXWThe DALI DT8 3CCT Tunable GU10 LED Module with Sunricher Driver advantages:
1. Single address for brightness & CCT
One DALI address controls both 0–100% dimming and 2700K–6500K color temperature, saving bus address resources.
2. Smooth, flicker-free tunable white
Seamless warm-to-cool white transition with no flicker or jumping – ideal for human-centric lighting (HCL).
3. Simple commissioning
Controller sends target CCT and brightness; driver handles internal mixing – no complex logic required.
4. Supports human-centric lighting (HCL)
Mimics natural daylight changes: cool white for focus during the day, warm white for relaxation in the evening.
5. Saves wiring & hardware costs
One GU10 module replaces two fixed-CCT fixtures; simple 2-wire DALI bus is all you need.
6. Ideal for dynamic scenes
Perfect for hotels, offices, retail, museums, and high-end residential applications requiring CCT changes.
7. Standardized & interoperable
Complies with IEC 62386-209 (DT8), compatible with major DALI-2 control systems and sensors.
8. GU10 form factor, easy retrofit
Fits standard GU10 sockets – ideal for track lights, spotlights, and downlights.
Why Choose WeiYe GU10 LED DALI DT6 Single Color Module?
01. To replace the GU10/MR16 Bulbs;
02. Beam angle by reflector: 15/24/38/60°;
03. Beam angle by lens: 10/15/24/36/60°;
04. Power: 7W 10W 12W;
05. Warranty: 3-5 Years;

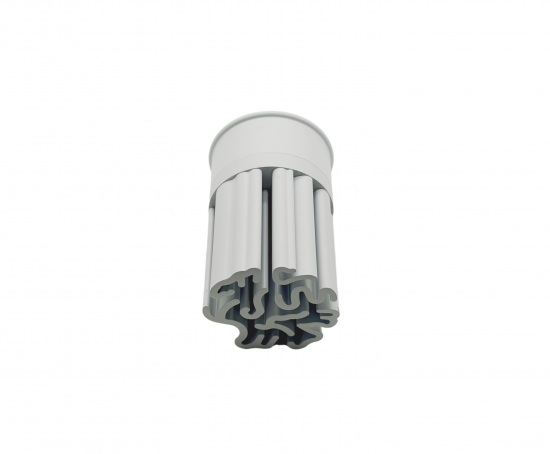

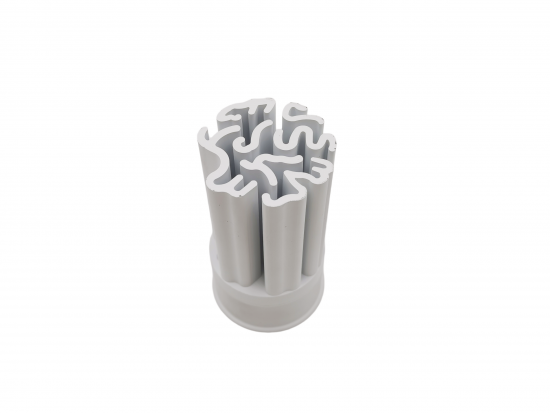

06. Material of heat sink: Cold forging aluminum 1070 pure aluminum;
07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;
08. Outer trim can be white/black;
09. Constant Voltage DC24V/Constant Current Available too;
10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;
11. Laser, Logo, Customized Package and OEM, ODM is optional too;
12. Fast lead time: 1-3 days for under 500pcs;
13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98
14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;
15. Dimmable type: 3 in 1 Dimmable (Triac, 3CCT Turnable, 4 Current Adjustable) /0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx /CCT Tunable 2700k-6500K/1800K-4000K/Smart WIFI Tuya Zigbee ;
This is the parameters of New Design GU10 LED Module series:
Model No. | Power | Lamp Lumen | LED Chip | CRI | CCT | LED Driver | Size |
WY-M9-7W | 7W | 560lm | Bridgelux C6 | CRI>90 CRI>95 CRI>98 | Single Color3CCT 1800-4000K 2700-4000K 3000-4000K 2700-6000K | Philips Osram Tridonic LTECH Eaglerise Lifud | D50*H50mm |
WY-M9-10W | 10W | 800lm | Bridgelux C8 | D50*H77mm | |||

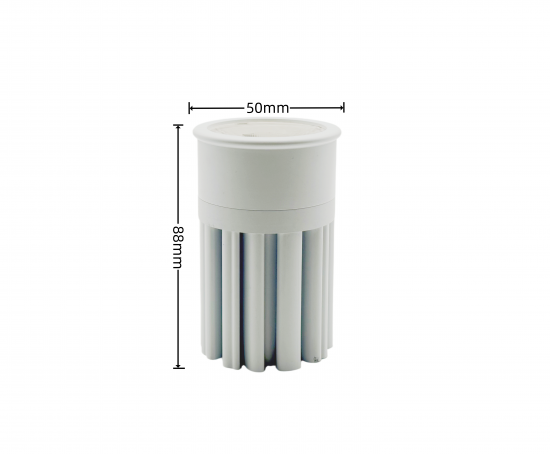

WY-M9-12W | 12W | 960lm | Bridgelux C8 | D50*H88mm |
Hot Selling 0-10V GU10 LED Module Key Applications
GU10 Module delivers highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.
Package
Power | QTY/CTN(pcs) | GW/CTN(kgs) | Carton Size(cm) |
7W | 60 | 11.70 | L46*W32*H35 |
10W | 60 | 14.45 | L46*W32*H35 |
12W | 60 | 14.45 | L46*W32*H35 |
15W | 48 | 13.90 | L50*W30*H37 |
20W | 48 | 14.50 | L50*W30*H37 |
