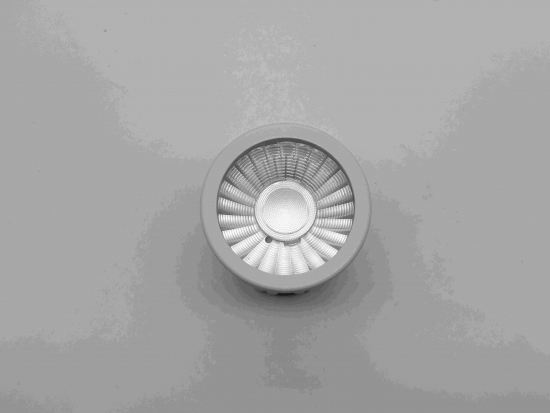

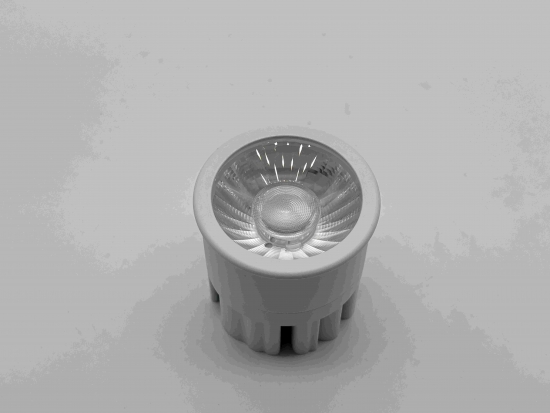

Modern Design 7W COB Aluminum LED Module 15W GU10 Downlight Spotlights 3000K Dimmable Indoor Light for Hotels & Offices

WeiYe LED new design GU10 LED Module M9,which is a high-performance lighting module designed for spotlights, downlights and track lighting systems.It offers exclusive customized design with unique structure and appearance which can do 7W,10W & 12W. Builted with a cold forging aluminum 1070 pure aluminum structure for excellent heat dissipation,ensuring a long lifespan up to 30,000 hours and reliable daily operation. IP44 waterproof make it can be applied to more scene,with perfect compatibility with your own fixtures.

  • Item NO.:

    WY-M9-7W
  • Lead Time:

    1-3 Days
  • Product Orgin:

    ZhongShan
  • Brand:

    LHWYLED
  • Shipping Port:

    ShenZhen/GuangZhou
  • Payment:

    TT
  • Color:

    White
  • MOQ:

    10
  • Tade Term:

    EXW
Inquiry now
DESCRIPTION

The  Customized GU10 LED Module Advantages:


01. To replace the GU10/MR16 Bulb;

02: Beam angle by reflector: 15/24/38/60°;

03. Beam angle by lens: 10/15/24/36/60°;

04. Power: 7W 10W 12W;

05. Warranty: 3-5 Years;

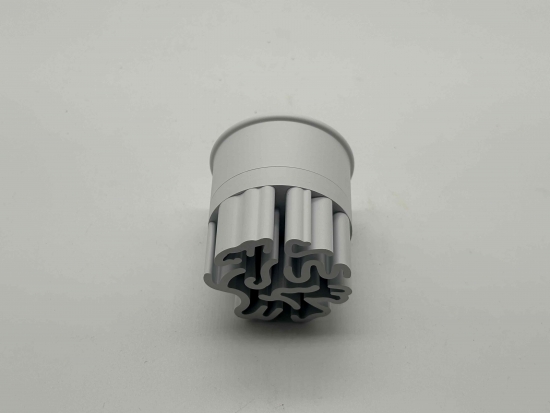

06. Material of heat sink: Cold forging aluminum 1070 pure aluminum;

07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;

08. Outer trim can be whte/black;

09. Constant Voltage DC24V/Constant Current Available too;

10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;

11. Laser, Logo, Customized Package and OEM,ODM is optional too;

12. Fast lead time: 1-3 days for under 500pcs;

13. High quality with CREE/ Citizen/Bridgelux LED chip RA90 or RA95 or RA98

14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;

15. 3 in 1 Dimming type: 0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx/CCT Tunable 2700k-6500K/1800K-4000K/Smart Tuya Zigbee ;


This is the parameters of  New Design GU10 LED Module series:



Model No.

Power

Lamp Lumen

LED Chip

CRI

CCT

LED Driver

Size

WY-M9-7W

7W

560lm

Bridgelux C6

CRI>90 CRI>95 CRI>98

3CCT

1800-4000K

2700-4000K

3000-4000K

2700-6000K

Philips

Osram

Tridonic

LTECH

Eaglerise

Lifud

D50*H50mm

WY-M9-10W

10W

800lm

Bridgelux C8

D50*H77mm

WY-M9-12W

12W

960lm

Bridgelux C8

D50*H88mm


Key Applications


GU10 Module deliver highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.
