professional Triac Dimmable GU10 MR16 LED Module 12W Private Customized IP44 High Quality OEM ODM Applied to Commercial supplier
LOADING IMAGES

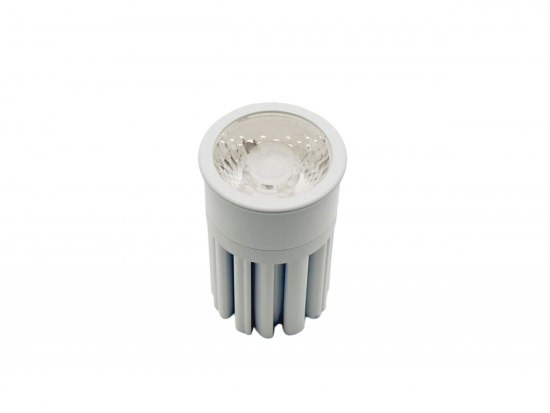

Triac Dimmable GU10 MR16 LED Module 12W Private Customized IP44 High Quality OEM ODM Applied to Commercial

Triac Dimmable GU10 MR16 LED Module 12W, a high-performance lighting solution ideal for spotlights, downlights, and track lighting systems. Featuring an exclusive private design with unique structure and appearance, this module is available in 7W, 10W, and 12W power options. Constructed from cold-forging 1070 pure aluminum, it delivers outstanding heat dissipation, supporting a long service life of up to 50,000 hours and stable daily performance. With an IP44 waterproof rating, it adapts to a wider range of applications while maintaining perfect.

  • Item NO.:

    WY-M9-12W
  • Lead Time:

    1-3 Days
  • Product Orgin:

    ZhongShan
  • Brand:

    LHWYLED
  • Shipping Port:

    ShenZhen/GuangZhou
  • Payment:

    TT
  • Color:

    White
  • MOQ:

    10
  • Tade Term:

    EXW
Inquiry now
DESCRIPTION

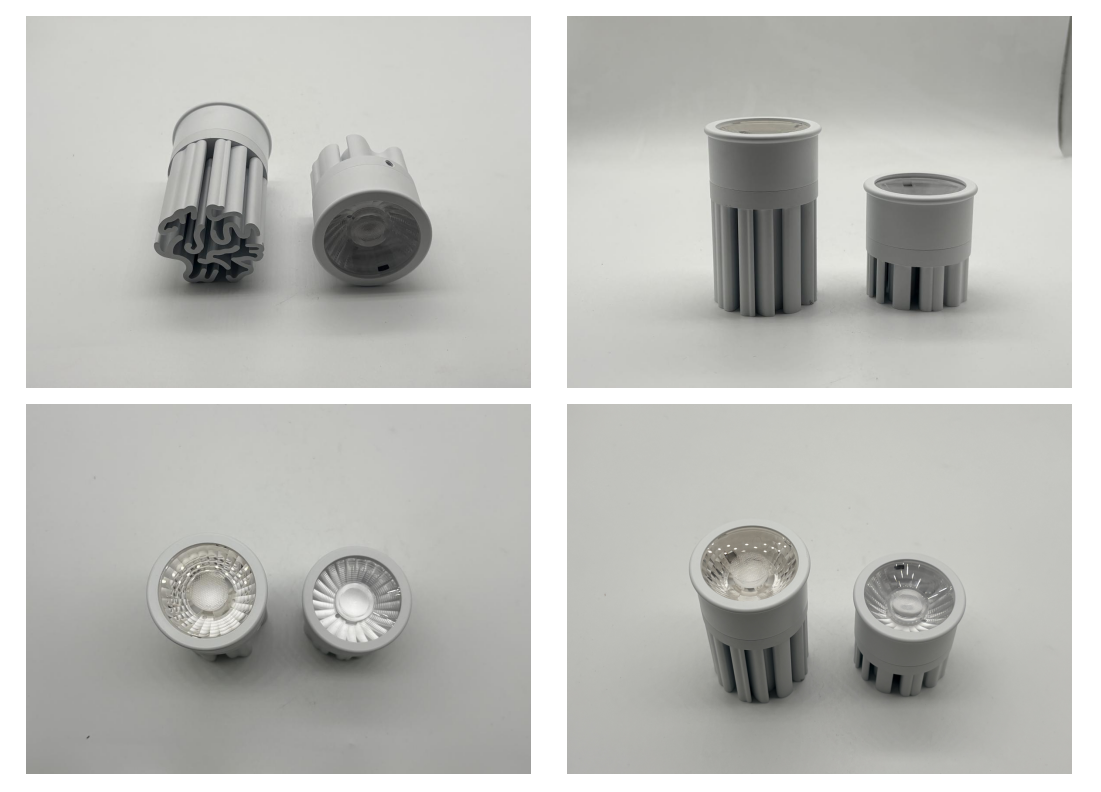

The  Private Customized GU10 LED Module Advantages:


01. To replace the GU10/MR16 Bulbs;

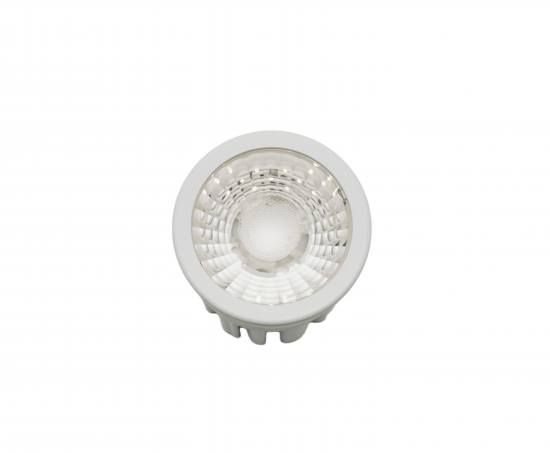

02: Beam angle by reflector: 15/24/38/60°;

03. Beam angle by lens: 10/15/24/36/60°;

04. Power: 7W 10W 12W;

05. Warranty: 3-5 Years;

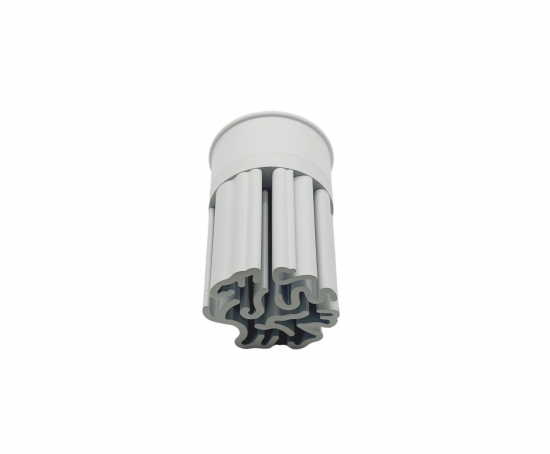

06. Material of heat sink: Cold forging aluminum 1070 pure aluminum;

07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;

08. Outer trim can be white/black;

09. Constant Voltage DC24V/Constant Current Available too;

10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;

11. Laser, Logo, Customized Package and OEM, ODM is optional too;

12. Fast lead time: 1-3 days for under 500pcs;

13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98

14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;

15. Dimming type: 3 in 1 Dimmable (Triac, 3CCT Turnable, 4 Current Adjustable) /0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx /CCT Tunable 2700k-6500K/1800K-4000K/Smart WIFI Tuya Zigbee ;


This is the parameters of the Uniqe Design GU10 LED Module series:




Model No.

Power

Lamp Lumen

LED Chip

CRI

CCT

LED Driver

Size

WY-M9-7W

7W

560lm

Bridgelux C6

CRI>90 CRI>95 CRI>98

3CCT

1800-4000K

2700-4000K

3000-4000K

2700-6000K

Philips

Osram

Tridonic

LTECH

Eaglerise

Lifud

D50*H50mm

WY-M9-10W

10W

800lm

Bridgelux C8

D50*H77mm

WY-M9-12W

12W

960lm

Bridgelux C8

D50*H88mm



Key Applications


GU10 Module delivers highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.



Package



Power

QTY/CTN(pcs)

GW/CTN(kgs)

Carton Size(cm)

7W

60

11.70

L46*W32*H35

10W

60

14.45

L46*W32*H35

12W

60

14.45

L46*W32*H35

15W

48

13.90

L50*W30*H37

20W

48

14.50

L50*W30*H37
