This LED module features a GU10 base, offering 9W high-efficiency lighting. It supports TRIAC dimming, enabling smooth brightness adjustment. With IP65 waterproof rating, the module is ideal for both indoor and outdoor applications, protecting against dust and water ingress. The compact design ensures easy installation and replacement, making it su1
Triac Dimmable IP65 Waterproof 7W GU10 LED Module is a high-performance LED lighting solution designed for both residential and commercial environments. Featuring TRIAC dimming compatibility, it allows smooth brightness adjustment, ensuring optimal ambiance for various settings. The IP65 rating guarantees excellent protection against dust and 1
Triac Dimmable GU10 MR16 LED Module 12W, a high-performance lighting solution ideal for spotlights, downlights, and track lighting systems. Featuring an exclusive private design with unique structure and appearance, this module is available in 7W, 10W, and 12W power options. Constructed from cold-forging 1070 pure aluminum, it delivers outstanding 1
Triac Dimmable GU10 MR16 LED Module 10W is an energy-efficient lighting solution designed for residential and commercial environments. With triac dimming compatibility, this module provides smooth, flicker-free brightness adjustment, ideal for creating customizable lighting atmospheres.
Triac dimmable M9 GU10 LED Module 7W, which is a high-performance lighting module. It offers exclusive customized design with unique structure and appearance which can do 7W,10W & 12W. Builted with a cold forging aluminum 1070 pure aluminum structure for excellent heat dissipation,ensuring a long lifespan up to 50,000 hours and reliab1
Triac Dimmable IP65 Waterproof 7W GU10 LED Module is a high-performance LED lighting solution designed for both residential and commercial environments. Featuring TRIAC dimming compatibility, it allows smooth brightness adjustment, ensuring optimal ambiance for various settings. The IP65 rating guarantees excellent protection against dust and water, making it suitable for indoor and outdoor use. With a standard GU10 base, installation is easy and widely compatible.
Item NO.:
WY-M3-7WLead Time:
1-3 DaysProduct Orgin:
ZhongShanBrand:
LHWYLEDShipping Port:
ShenZhen/GuangZhouPayment:
TTColor:
Dark GreyMOQ:
10Tade Term:
EXWThe IP65 Waterproof GU10 LED Module Advantages:
01. To replace the GU10/MR16 Bulbs;
02: Beam angle by reflector: 15/24/36/50°;
03. Beam angle by lens: 10/15/24/36/60°;
04. Power: 7W 9W 12W;
05. Warranty: 3-5 Years;
06. Material of heat sink: Heavy Diecasting Aluminum;
07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;
08. Outer trim can be white/black;
09. Constant Voltage DC24V/Constant Current Available too;
10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;
11. Laser, Logo, Customized Package and OEM, ODM is optional too;
12. Fast lead time: 1-3 days for under 500pcs;
13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98
14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;
15. Dimming type: 3 in 1 Dimmable (Triac, 3CCT Turnable, 4 Current Adjustable) /0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx /CCT Tunable 2700k-6500K/1800K-4000K/Smart WIFI Tuya Zigbee ;
This is the parameters of the IP65 GU10 LED Module series:
Model No. | Power | Lamp Lumen | LED Chip | CRI | CCT | LED Driver | Size |

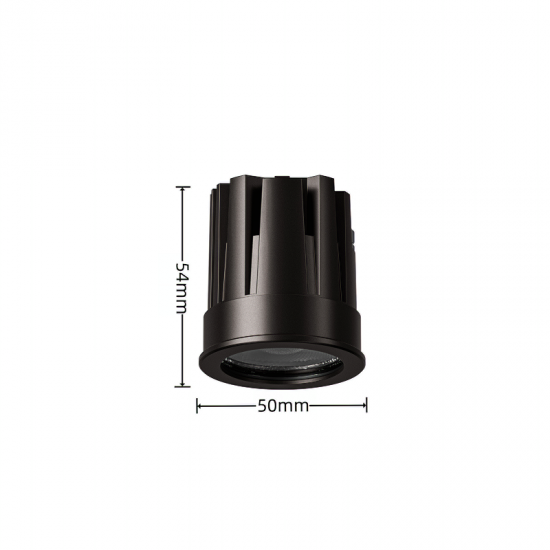

WY-M3-7W | 7W | 560lm | Bridgelux C6 | CRI>90 CRI>95 CRI>98 | 3CCT 1800-4000K 2700-4000K 3000-4000K 2700-6000K | Philips Osram Tridonic LTECH Eaglerise Lifud | D50*H54mm |
WY-M3-9W | 9W | 720lm | Bridgelux C8 | D50*H50mm | |||
WY-M3-12W | 12W | 1000lm | Bridgelux C8 | D50*H51mm |
Key Applications
GU10 Module delivers highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.
Package
Power | QTY/CTN(pcs) | GW/CTN(kgs) | Carton Size(cm) |
7W | 60 | 11.70 | L46*W32*H35 |
10W | 60 | 14.45 | L46*W32*H35 |
12W | 60 | 14.45 | L46*W32*H35 |
15W | 48 | 13.90 | L50*W30*H37 |
20W | 48 | 14.50 | L50*W30*H37 |
