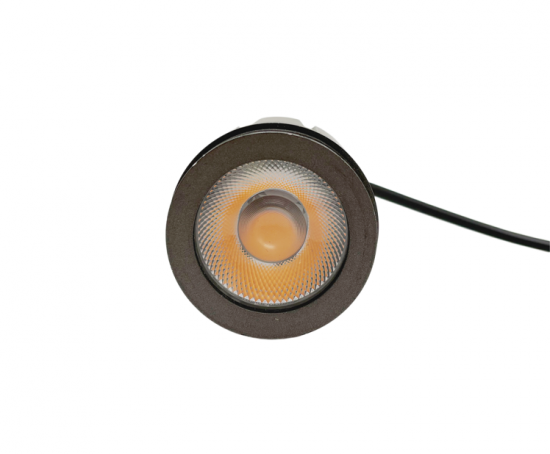

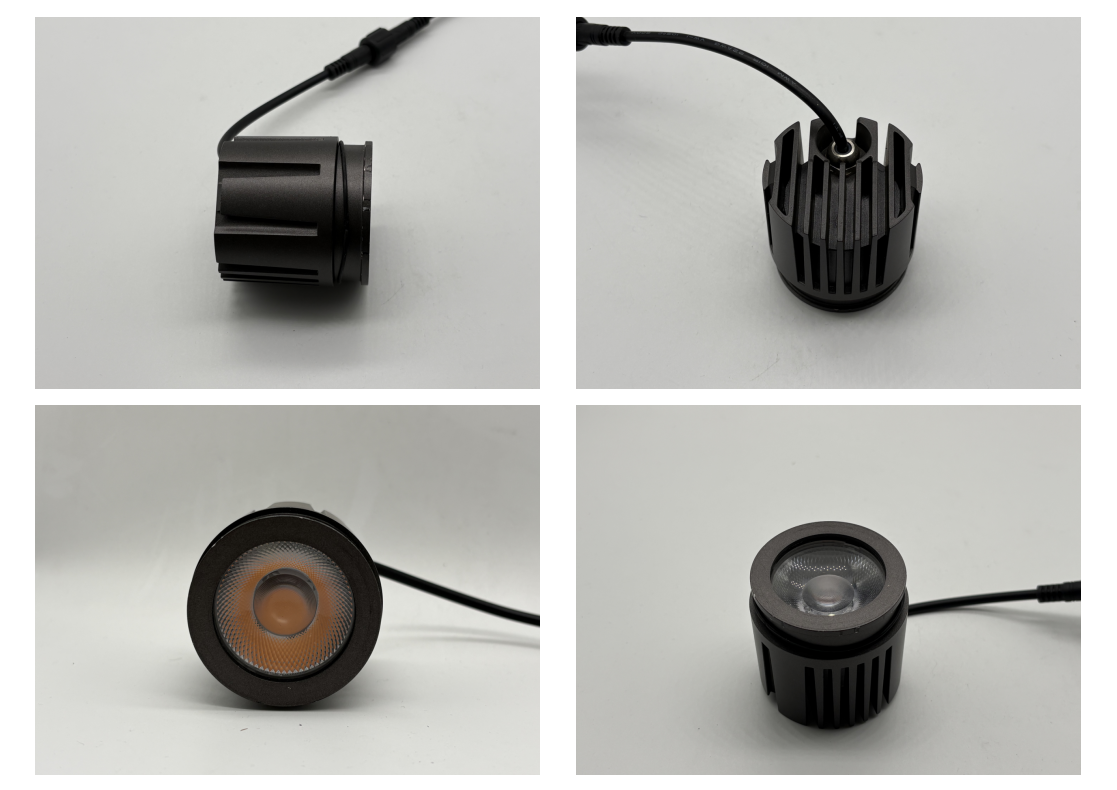

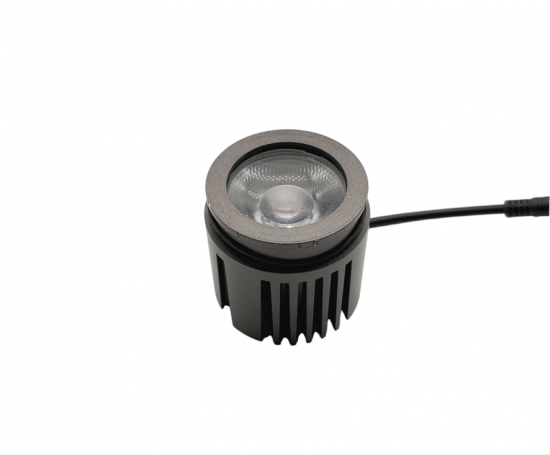

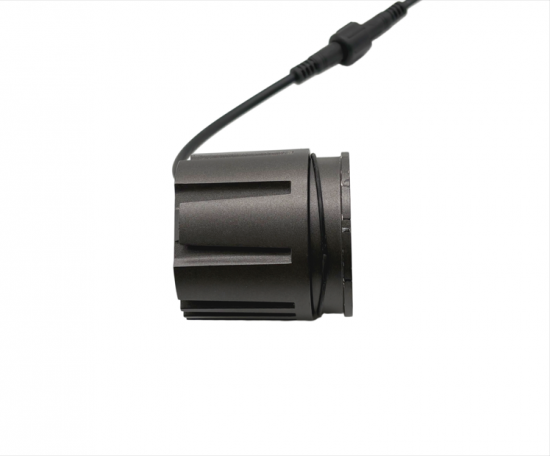

Triac Dimmable IP65 Waterproof GU10 LED Module 9W Housing Bathroom Diecasting Aluminum Spotlight Downlight Long Lifespan Recessed

This LED module features a GU10 base, offering 9W high-efficiency lighting. It supports TRIAC dimming, enabling smooth brightness adjustment. With IP65 waterproof rating, the module is ideal for both indoor and outdoor applications, protecting against dust and water ingress. The compact design ensures easy installation and replacement, making it suitable for various environments such as gardens, patios, kitchens, and bathrooms.

  • Item NO.:

    WY-M3-9W
  • Lead Time:

    1-3 Days
  • Product Orgin:

    ZhongShan
  • Brand:

    LHWYLED
  • Shipping Port:

    ShenZhen/GuangZhou
  • Payment:

    TT
  • Color:

    Dark Grey
  • MOQ:

    10
  • Tade Term:

    EXW
Inquiry now
DESCRIPTION

The  IP65  Waterproof  GU10 LED Module Advantages:


01. To replace the GU10/MR16 Bulbs;

02: Beam angle by reflector: 15/24/36/50°;

03. Beam angle by lens: 10/15/24/36/60°;

04. Power: 7W 9W 12W;

05. Warranty: 3-5 Years;

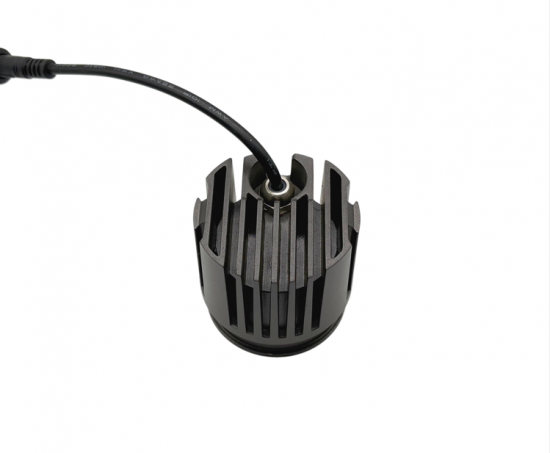

06. Material of heat sink: Heavy Diecasting Aluminum;

07. The Honeycomb/Clear Glass cover/Oval Line PC Cover is available too;

08. Outer trim can be white/black;

09. Constant Voltage DC24V/Constant Current Available too;

10. Compatible to all MR16, GU10, GU5.3 halogen bulbs;

11. Laser, Logo, Customized Package and OEM, ODM is optional too;

12. Fast lead time: 1-3 days for under 500pcs;

13. High quality with CREE/ Citizen/Bridgelux LED chip CRI90 or CRI95 or CRI98

14. Philips/Osram/Tridonic/LTECH/Eaglerise/Lifud driver PF 0.50 or PF 0.90;

15. Dimming type: 3 in 1 Dimmable (Triac, 3CCT Turnable, 4 Current Adjustable) /0-10V/Triac/Phase Dim/ Dali DT6/DT8 /Dmx /CCT Tunable 2700k-6500K/1800K-4000K/Smart WIFI Tuya Zigbee ;


This is the parameters of the IP65 GU10 LED Module series:


Model No.

Power

Lamp Lumen

LED Chip

CRI

CCT

LED Driver

Size

WY-M3-7W

7W

560lm

Bridgelux C6

CRI>90 CRI>95 CRI>98

3CCT

1800-4000K

2700-4000K

3000-4000K

2700-6000K

Philips

Osram

Tridonic

LTECH

Eaglerise

Lifud

D50*H54mm

WY-M3-9W

9W

720lm

Bridgelux C8

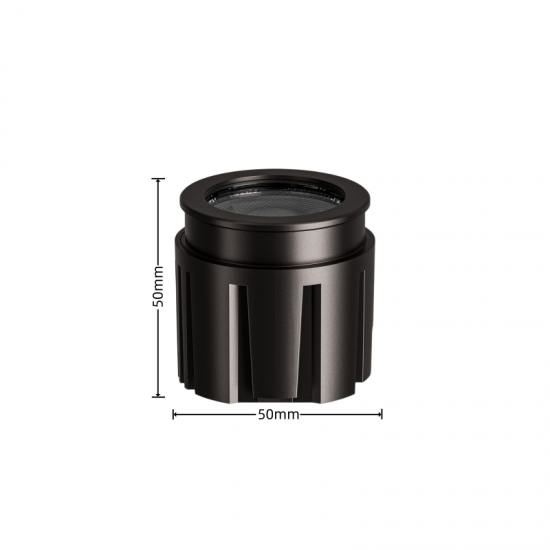

D50*H50mm

WY-M3-12W

12W

1000lm

Bridgelux C8

D50*H51mm



Key Applications


GU10 Module delivers highly focused accent lighting, widely used in retail displays, galleries, hotels, restaurants and residential interiors. They effectively highlight merchandise, artworks, architectural details and decorative features, creating layered lighting effects and enhancing space atmosphere. With flexible installation and adjustable beam angles, they are ideal for commercial projects and modern home lighting.



Package



Power

QTY/CTN(pcs)

GW/CTN(kgs)

Carton Size(cm)

7W

60

11.70

L46*W32*H35

10W

60

14.45

L46*W32*H35

12W

60

14.45

L46*W32*H35

15W

48

13.90

L50*W30*H37

20W

48

14.50

L50*W30*H37
